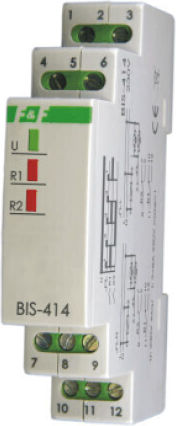

Sequential bistable relay for DIN rail 1-funk230V or 24V AC/DC. I=2x16A, InRush contact 160A/20ms, 2x1P screw terminals.
The "i" version of the relay has one contact designed to work with receivers with high inrush current, such as: LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
The electronic bistable pulse relay allows activation or deactivation of lighting or other devices from multiple points using parallel connected momentary control switches.

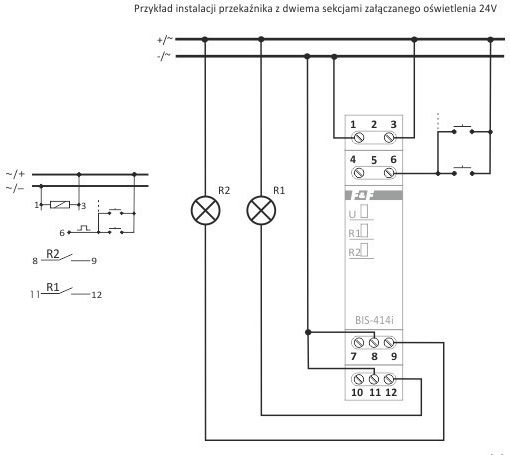

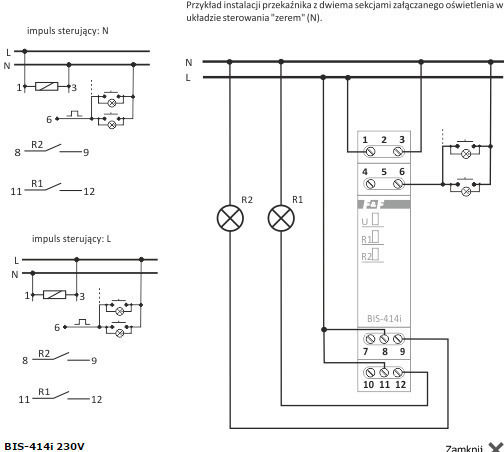

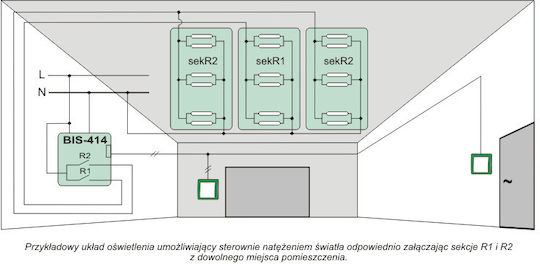

The BIS-414 relay has two switching sections and allows you to activate two lighting circuits or other receivers from multiple points.
The power supply of the relay is indicated by the green LED U. The sequential relay has two separate outputs R1 and R2. The contact state (closed/open) is enforced sequentially according to the set program. The contacts switch to the next state after the next pulse from the control button. The activation of contacts R1 and R2 is indicated by the lighting of the corresponding red LEDs R1 and R2.
After a power outage, the contact state is reset. Once the supply voltage returns, the relay starts operating from sequence 0.
Attention! The BIS-414 230V and BIS-414i 230V can be operated with illuminated buttons. Attention! The BIS-414 24V and BIS-414i 24V cannot be operated with illuminated buttons.
