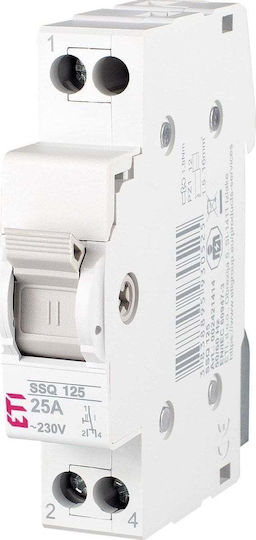

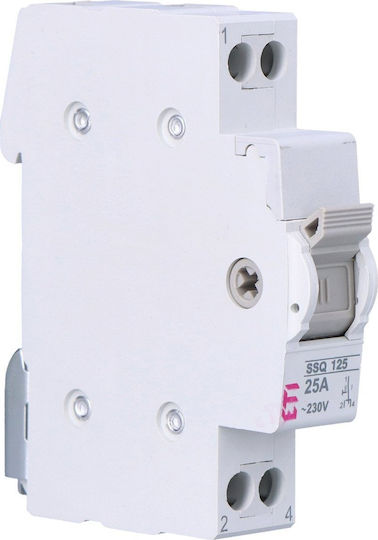

Three-position switch, selectable power switch I-0-II (1-0-2) network-generator 25A 1P single-pole, modular manufacturer: Model ETI: SSQ 125.

The SSQ I-0-II modular power switches allow for simple and uninterrupted switching between power sources in case of emergency (e.g., power loss from the grid). They are intended for installation in distribution boards adapted for the installation of modular equipment – equipped with TH35 rails.

The switches can be sealed for the selected position: I or II.

• Nominal current (A): 25
• Rated AC voltage (V): 230
• Number of poles: 1
• Degree of protection IP: 20
• Possible cross-section (mm2): 16
• Rated frequency (Hz): 50/60
• Standards: 60947-3

Advantages:

• The family of installation switches extends the modular system of EVE devices.
• All switches are manufactured in a modular form - unit width of 18 mm.
• The distance between the switch contacts in the open position is greater than 3 mm.
• The switches have terminals that allow the connection of wires with the following cross-section:
• 16 mm2 for a solid wire type cable.
• 10 mm2 for a stranded wire cable.

The modular equipment from the Slovak company ETI ensures effective protection of electrical installations and devices. ETI equipment is widely used in construction and industry, where there are electrical installations, distribution boards, or lighting.
