Simet Power Distribution Block 81654002
Electrical Supplies

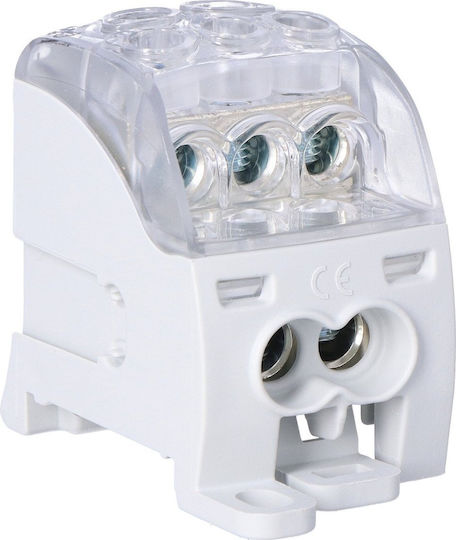

Simet Power Distribution Block 81654002

SUB 210 Distribution block - general Al/Cu 82050 SIMBLOCK gray

  • Rated voltage AC/DC [V]: 1000 AC/DC
  • Rated current Cu [A]: 214 A (input 2 x 25 mm²) / 125 A (input 1 x 35 mm²)
  • Input (wire) [mm²]: 1 x (4...

SUB 210 Distribution block - general Al/Cu 82050 SIMBLOCK gray

  • Rated voltage AC/DC [V]: 1000 AC/DC
  • Rated current Cu [A]: 214 A (input 2 x 25 mm²) / 125 A (input 1 x 35 mm²)
  • Input (wire) [mm²]: 1 x (4 - 35)
  • Input (zip branch) [mm²]: 1 x (2.5 - 25)
  • Output (wire) [mm²]: 1 x (1.5 - 16) / 2 x (2.5 - 25) / 3 x (1.5 - 16)
  • Output (cord with sleeve) [mm²]: 1 x (1.5...
See full description See full description
Review the product
Product report

Description

Description

SUB 210 Distribution block - general Al/Cu 82050 SIMBLOCK gray

  • Rated voltage AC/DC [V]: 1000 AC/DC
  • Rated current Cu [A]: 214 A (input 2 x 25 mm²) / 125 A (input 1 x 35 mm²)
  • Input (wire) [mm²]: 1 x (4 - 35)
  • Input (zip branch) [mm²]: 1 x (2.5 - 25)
  • Output (wire) [mm²]: 1 x (1.5 - 16) / 2 x (2.5 - 25) / 3 x (1.5 - 16)
  • Output (cord with sleeve) [mm²]: 1 x (1.5 - 10) / 2 x (1.5 - 16) / 3 x (1.5 - 10)

Parameters:

  • Weight: 0.14
  • Product code: CXR514
  • EAN: 5907813233685

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Power Distribution Block

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

SUB 210 Distribution block - general Al/Cu 82050 SIMBLOCK gray

  • Rated voltage AC/DC [V]: 1000 AC/DC
  • Rated current Cu [A]: 214 A (input 2 x 25 mm²) / 125 A (input 1 x 35 mm²)
  • Input (wire) [mm²]: 1 x (4 - 35)
  • Input (zip branch) [mm²]: 1 x (2.5 - 25)
  • Output (wire) [mm²]: 1 x (1.5 - 16) / 2 x (2.5 - 25) / 3 x (1.5 - 16)
  • Output (cord with sleeve) [mm²]: 1 x (1.5 - 10) / 2 x (1.5 - 16) / 3 x (1.5 - 10)

Parameters:

  • Weight: 0.14
  • Product code: CXR514
  • EAN: 5907813233685

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Power Distribution Block

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

43,45 €
