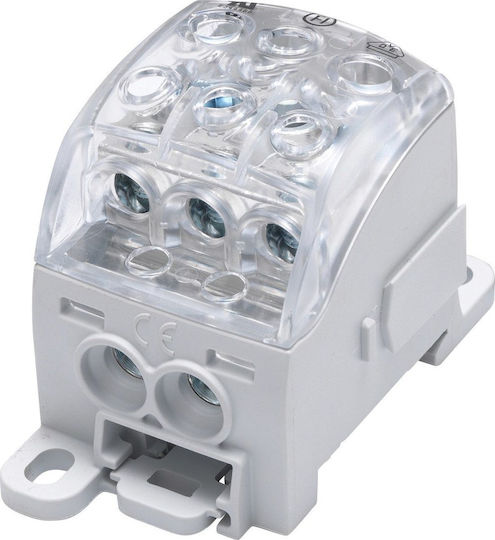

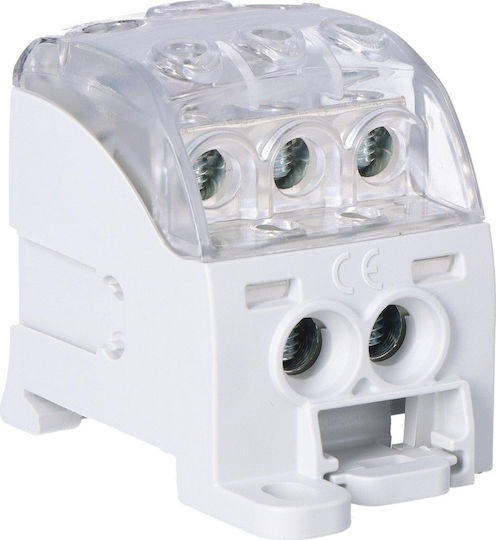

SUB 220 Distribution Block - General Al/Cu 82060 SIMBLOCK

Color: grey

• Nominal voltage AC/DC [V]: 1000 AC/DC
• Nominal current Cu [A]: 164 A (input 2 x 16 mm²) / 101 A (input 1 x 25 mm²)
• Input (wire) [mm²]: 1 x (2.5 - 25)
• Input (with rubber) [mm²]: 1 x (1.5 - 16)
• Input (flat cable) [mm²]: --
• Output (wire) [mm²]: 1 x (1.5 - 16) / 2 x (1.5 - 16) / 3 x (1.5 - 10)
• Output (cord with sleeve) [mm²]: 1 x (1.5 - 10) / 2 x (1.5 - 10) / 3 x (1.5 - 6)
• Mounting: TS 35 rail / Mounting plate
• Nominal current Cu [A]: 192
• Input connection sections - Rigid wires [mm²]: 1x70
• Input connection sections - Flexible wires [mm²]: 1x50
• Output connection sections - Rigid wires [mm²]: 2x25 / 3x16
• Output connection sections - Flexible wires [mm²]: 2x16 / 3x10

Weight: 0.2 kg

Product code: CXR518

EAN: 590781323301
