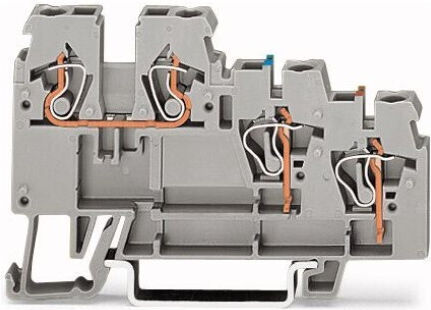

Rail connector for 3-wire sensors, gray (270-560)

• 3-wire sensor socket
• Total number of terminals: 4
• Total number of dynamic: 3
• Color: gray
• Rated voltage (III / 3): 250 V
• Rated overvoltage (III / 3): 4 kV
• Pollution degree: 3
• Rated current: 18 A
• Number of levels: 3
• Cable connection technique: CAGE CLAMP®
• Installation type: Tool-operated
• Cable material: Copper
• Single wire, tool assembly: 0.08 … 2.5 mm² / 28 … 12 AWG
• Stranded, tool assembly: 0.08 … 2.5 mm² / 28 … 12 AWG
• Wire stripping length: 6 … 7 mm
• End (wire gauge) 12 AWG: THHN, THWN
• Wiring type: Front wiring
• Structure: Horizontal
• Fire load: 0.169 MJ
• Weight: 8.817 g
• Width: 5 mm
• Height from the top of the rail: 39 mm
• Main: 68 mm
