Modular distribution board SRN-6 1x6 surface-mounted IP40 - 1.1

The distribution boards are made of high-quality plastic and are suitable for indoor use. They feature a closed box enclosure and are appropriate for sealing.

The side parts of the enclosure have a textured surface for easy insertion of cables or installation pipes. They are equipped with descriptive labels and have N+PE terminal strips.

The mounting element on the distribution board is the TH 35/7.5 (Eurorail) support, which allows for the installation of surge protection, residual current circuit breakers, and other electrical devices.

According to current standards, distribution boards must be installed on flame-retardant walls by suitably qualified individuals.

• Color: White
• Symbol: SRN-6
• Type/units per row: 1 x 6
• N+PE terminals: Yes

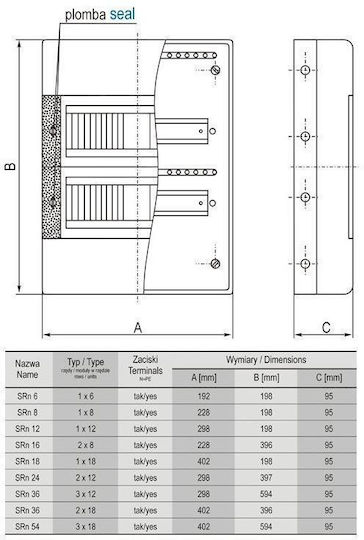

• Dimensions: 192 x 198 x 95 mm
• Installation method: Surface-mounted
• Cover type: Closed
• Enclosure material: Plastic
• Protection level: IP40
• Expansion capability: No
• Depth [mm]: 95
• Height [mm]: 198
• Width [mm]: 192
