Dimensions

Type

Waste Water / Sewage, Rainwater

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles

Voltage

Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

Horsepower

0.73 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

Power

547.5 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

Cable Length

10 m

Features

with Cutter Impeller

No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.

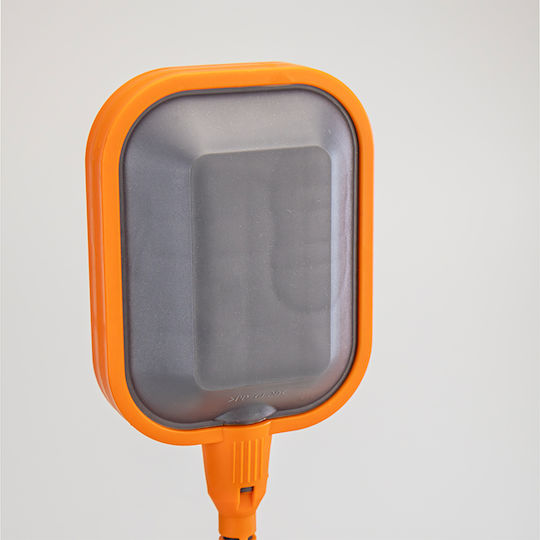

Float switch

Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.

Vortex

No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height

9 m

Maximum Head Height: 9

The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

• The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
• The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.

Maximum Output

17 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).

Maximum Particle Size

5 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.

Materials & Construction

Set

No

Stainless

No
