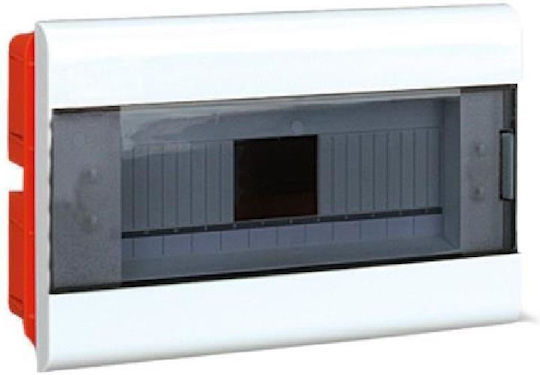

Modular distribution board SRP-12 1x12 flush-mounted IP40 - 2.3

The distribution boards are made of high-quality plastic and are suitable for indoor use. They feature a closed box enclosure and are suitable for sealing.

• Side parts with relief for easy entry of cables or installation pipes.
• Equipped with descriptive labels.
• N+PE terminal strips.
• TH 35/7.5 (Eurorail) support for installation of surge protection, residual current circuit breakers, and other electrical devices.
• Must be installed on flame-retardant walls by suitably qualified personnel.

Technical specifications:

• Color: white
• Symbol: SRP-12
• Type/modules per row: 1 x 12
• N+PE terminals: yes

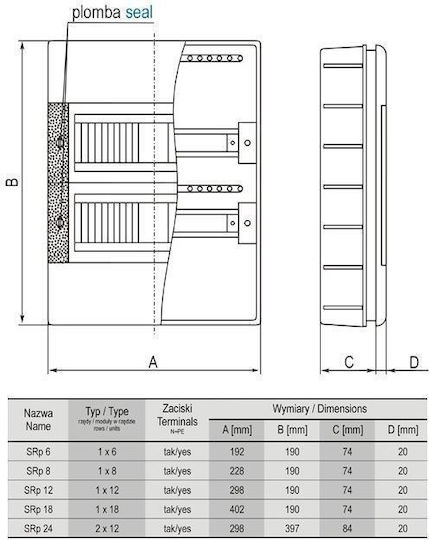

• Dimensions: 298 x 190 x 74 x 20 mm
• Installation method: flush mounting
• Enclosure material: plastic
• Protection level: IP40
• Expansion capability: No
• Height [mm]: 190
• Width [mm]: 298
• Depth [mm]: 74
