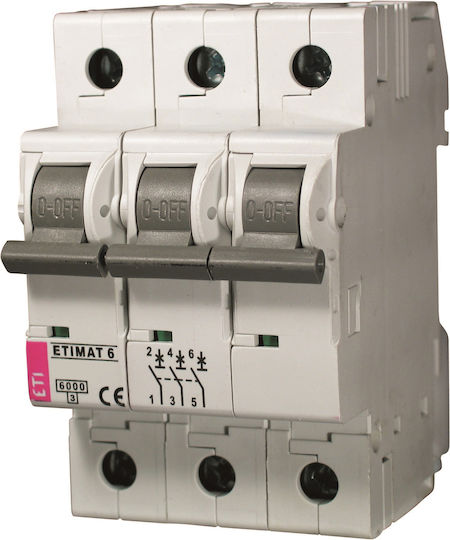

ETI Automatic Circuit Breaker 25A Triple-pole AC/DC 2115518
Automatic Circuit Breaker

ETI Automatic Circuit Breaker 25A Triple-pole AC/DC 2115518

ETIMAT 6 Circuit Breaker 3p 6kA B25

  • Number of Poles: 3p
  • Release Characteristic: B
  • Rated Current IN: 25A
  • Short-Circuit Breaking Capacity: 6kA
  • Rated Voltage UN: 230/400V 50/60Hz, max 60V DC
  • Rated...

ETIMAT 6 Circuit Breaker 3p 6kA B25

  • Number of Poles: 3p
  • Release Characteristic: B
  • Rated Current IN: 25A
  • Short-Circuit Breaking Capacity: 6kA
  • Rated Voltage UN: 230/400V 50/60Hz, max 60V DC
  • Rated Insulation Voltage Ui: 500V for normal conditions
  • Maximum Operating Voltage Umax: 440V AC
  • Minimum Operating Voltage Umin: 12V AC
  • Energy Limitation Class: 3
  • Cable...
See full description See full description
Review the product
Product report

Description

Description

ETIMAT 6 Circuit Breaker 3p 6kA B25

  • Number of Poles: 3p
  • Release Characteristic: B
  • Rated Current IN: 25A
  • Short-Circuit Breaking Capacity: 6kA
  • Rated Voltage UN: 230/400V 50/60Hz, max 60V DC
  • Rated Insulation Voltage Ui: 500V for normal conditions
  • Maximum Operating Voltage Umax: 440V AC
  • Minimum Operating Voltage Umin: 12V AC
  • Energy Limitation Class: 3
  • Cable Connection: 1 - 25 mm², (max 3 Nm)
  • Construction: Carbon-breaking, temperature-resistant
  • Color: Grey RAL 7035
  • Mounting: On TH 35 rail
  • Operating Position: Any position
  • Module Width: 18 mm
  • Seal Position: ON-OFF
  • Operating Temperature: From -25°C to +55°C
  • Protection Degree: IP20
  • Usage: Clearly for the protection of electrical installations in residential, public, and industrial facilities

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
3
Rated Current
25 A
Operating Curve
Curve B

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve B

Suitable for domestic circuits and lighting, it activates quickly at low overcurrents.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

ETIMAT 6 Circuit Breaker 3p 6kA B25

  • Number of Poles: 3p
  • Release Characteristic: B
  • Rated Current IN: 25A
  • Short-Circuit Breaking Capacity: 6kA
  • Rated Voltage UN: 230/400V 50/60Hz, max 60V DC
  • Rated Insulation Voltage Ui: 500V for normal conditions
  • Maximum Operating Voltage Umax: 440V AC
  • Minimum Operating Voltage Umin: 12V AC
  • Energy Limitation Class: 3
  • Cable Connection: 1 - 25 mm², (max 3 Nm)
  • Construction: Carbon-breaking, temperature-resistant
  • Color: Grey RAL 7035
  • Mounting: On TH 35 rail
  • Operating Position: Any position
  • Module Width: 18 mm
  • Seal Position: ON-OFF
  • Operating Temperature: From -25°C to +55°C
  • Protection Degree: IP20
  • Usage: Clearly for the protection of electrical installations in residential, public, and industrial facilities

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
25 A
Operating Curve
Curve B

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve B

Suitable for domestic circuits and lighting, it activates quickly at low overcurrents.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

22,23 €
14,00 €   shipping cost
