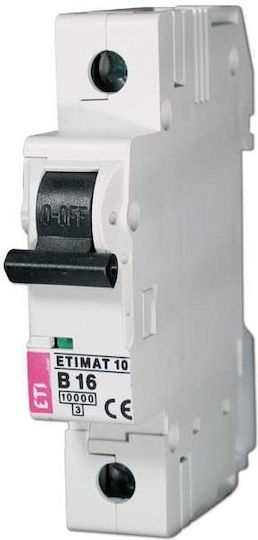

The ETIMAT10 1P C 32A 10kA AC overload switch is a basic and widely used device in the field of automated protection, designed to mitigate the effects in cases of short circuits and overloads in electrical installations.

The current flow exceeding the switch's nominal value causes its release and the interruption of the powered circuit. This function aims to protect devices and installations from damage, protect individuals from electric shock, and ultimately prevent fires.

Due to its parameters, it is often used in electrical installations of residential buildings to protect lighting circuits, sockets, and control systems.

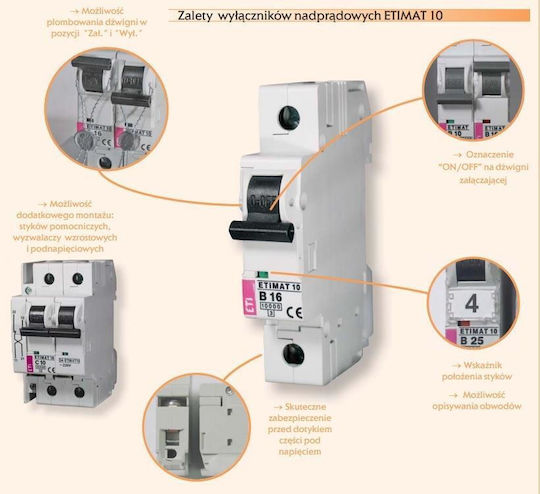

The construction of the switches allows for the installation of additional equipment, such as auxiliary contacts, which enable remote indication of the device's operation.

The switch can also be supplemented with contacts for increased nominal currents that remotely open the switches when voltage appears, or with contacts for low voltages that activate the switch in case of a voltage drop relative to the nominal value.

Overload switches are installed on TH-35 mounting rails. The breaking capacity of this switch is determined at a level of 10kA.

• Nominal voltage: 230V AC
• Frequency: 50Hz
• Nominal current: 32A
• Characteristic: C
• Protection degree: IP20
• Number of poles: 1
• Installation: TH-35 rail
