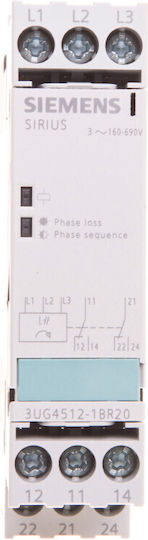

Phase sequence and failure relay 3A 2P 0.45 sec 160-690V AC (3UG4512-1BR20)

• Dimensions: 22.5mm x 92mm x 91mm
• Protection level: IP20
• Number of poles: 3
• Voltage type: AC
• Supply voltage: 160-690V
• Maximum response time: 0.45 sec
• Number of transition contacts: 2
• Nominal operating current (AC-15, 400V 50/60Hz): 3A
• Nominal operating current (DC-13, 24V): 1A
• Display: LED
• Type of electrical connection: screw terminal
• Minimum operating temperature: -25°C
• Maximum operating temperature: 60°C
