Product Number

aw_491412

Specifications

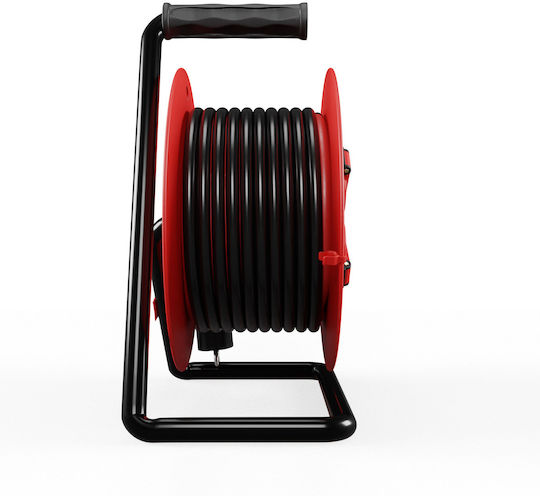

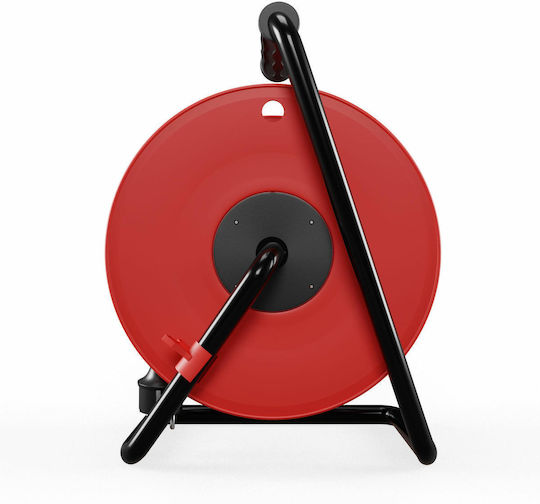

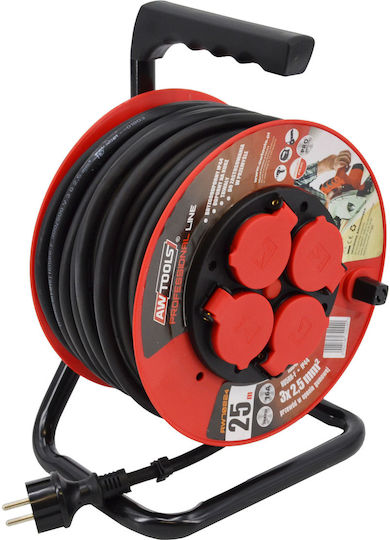

Type

Reel

Type

Open Type

Type

Open Type

The reel is open, you can see the cable wound.

Colour

Black

Automatic Cable Rewind

No

Automatic Cable Rewind

The cable automatically retracts back into the reel with a "click", just like with a vacuum cleaner.

Industrial Type

No

Industrial Type

Durable socket for heavy-duty use (e.g. construction sites, workshops)

Technical Features

Length

25 m

Cable Cross Section

3 x 1.5 mm²

Cable Cross Section

It is the "thickness" of the cable. The thicker it is, the more current it can handle without its temperature rising.

3 x 1.5

Ideal for larger household appliances such as dishwashers, low-power electric cookers, or lighting fixtures in large rooms.

Number of Sockets

1

Output Voltage

Single-phase

Output Voltage

Single-phase

The single-phase extension reel connects to a household or professional 230V AC supply. It is intended for low or medium power devices, such as lamps, computers, or tools. The operating current usually ranges between 10–16A. It is easy to use and transport, but cannot power high-power machines. It is recommended to use cables of suitable cross-section to avoid overheating.

Nominal Maximum Load

3680 W

Nominal Maximum Load

The maximum electrical load that the extension reel can support without overheating. This applies only when the extension reel is fully unwound. When it is wound, the allowable power is lower due to overheating.

Safety & Protection

Protection Certification

IP44

Protection Certification

IP protection indicates the resistance of an electrical component to dust and water. The first digit (0–6) refers to protection against solid objects, from none to complete protection against dust. The second digit (0–9) refers to protection against liquids, from drips to full immersion or high-pressure water. For example, IP44 means protection against limited dust and water splashes, while IP67 means complete dust protection and immersion up to 1 meter.

IP44

• Protection against solids: 2 → Objects > 12mm (e.g. finger).
• Protection against water: 0 → No protection.
• Use: Indoor areas, dry installations, such as lighting fixtures or computers.



Waterproof

Yes

Overload Protection

No

Overload Protection

The overload protection / thermal switch automatically cuts off the power flow in case of excessive load or overheating, protecting both the device and the cable.
