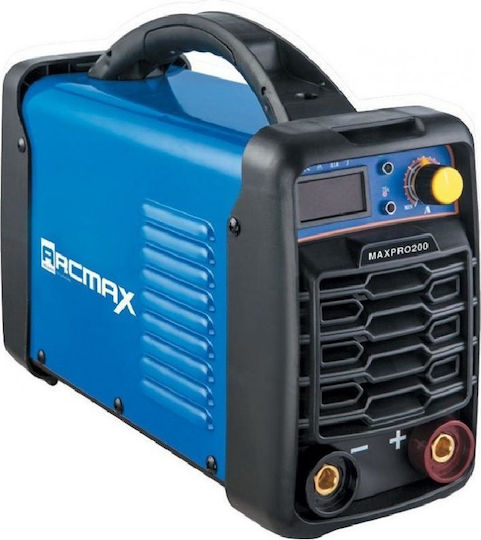

Arcmax Maxpro 201 Inverter MMA / TIG Welding Machine with Maximum Welding Current of 200A and 50% Duty Cycle
Welding Machines

Arcmax Maxpro 201 Inverter MMA / TIG Welding Machine with Maximum Welding Current of 200A and 50% Duty Cycle

Key features:

  • Duty cycle (max Amperes): 50%
  • Electrode diameter: 2.5 - 5.0 mm
  • Weight: 6000 gr
See full description

Top specs

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    220

    It is the supply voltage that the machine requires from the electrical grid.
  • See all
119 10 €
Delivery Tue, 03 Nov - Thu, 05 Nov
20,00 €   shipping cost
Sent from Greece
From Karagianni 5.0 (5)
5.0 (5 reviews)
Greece
2 pieces
See Tools on the page of Karagianni

Learn more about invoicing
Review the product
Product report

Description

Description

Inverter MMA welding machine from the manufacturer Arcmax, where inverter technology enhances the performance and durability of the machine and helps reduce its weight. The MMA electrode method creates thick and strong welds without the need for an external gas supply, making it ideal for welding outside the workshop. It can operate continuously for 5 minutes at 200A before needing to stop to cool down. Therefore, due to the maximum Amps it supports, it melts thicker wires more easily and creates thicker welds with fewer passes. Its weight reaches 6kg.

At a glance

  • Welding type: MMA
  • Electrode diameter: 2.5 - 5.0 mm
  • IGBT Inverter System
  • Welding capability: Ferrous metals
  • Welding current (max): 200 A
  • Duty cycle (max Amperes): 50 %
  • Weight: 6000 gr

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
MMA, TIG

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
50 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
220 V

Supply Voltage: 220


It is the supply voltage that the machine requires from the electrical grid.
Maximum Electrode Diameter
5 mm

Maximum Electrode Diameter: 5


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
6000 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
