Asus PRO WS WRX90E-SAGE Motherboard Micro ATX with AMD TR5 Socket
Motherboards

Asus PRO WS WRX90E-SAGE Motherboard Micro ATX with AMD TR5 Socket

Key features:

  • 8 DDR5 Ram slots
  • AMD Ryzen Threadripper PRO 7000 WX
  • Support for PCI Express 5.0 x16
  • Mini DisplayPort, VGA connection
  • Slots for 4x Sata III and 4x M.2
  • 6 USB-A 3.2 ports, 2 USB-C 4 ports
See full description

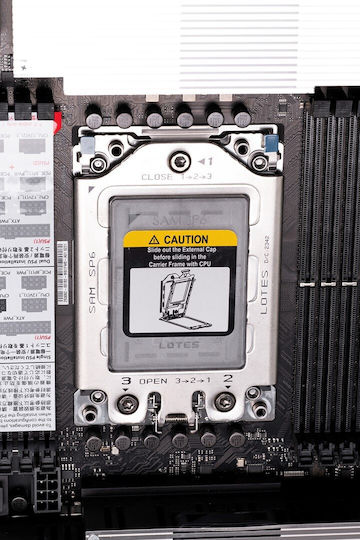

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

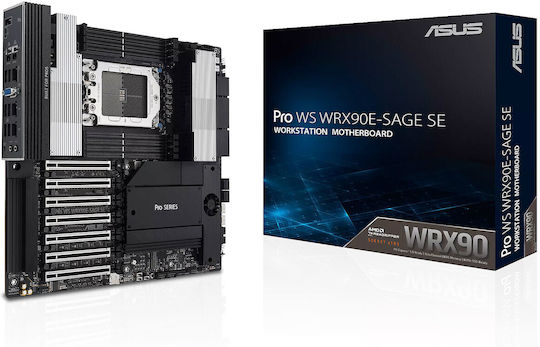

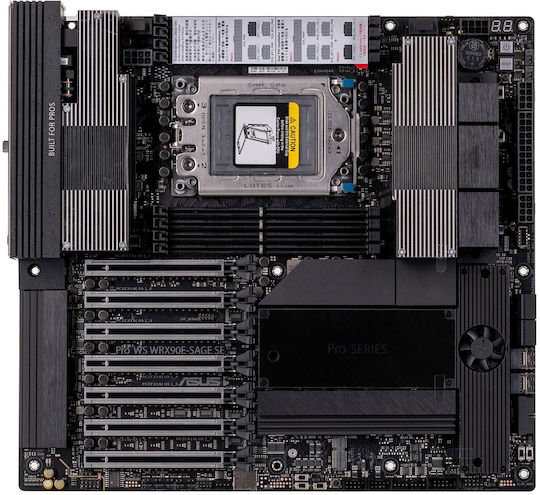

The Asus PRO WS WRX90E-SAGE is a high-performance motherboard, ideal for professionals seeking performance. It supports AMD Ryzen Threadripper PRO 7000 WX multi-core processors in the AMD sTR5 socket, DDR5 4-channel RAM, PCIe 5.0 M.2 drives, and PCI-Express 5.0 graphics cards for exceptional performance. It features seven PCIe 5.0 x16 slots, supports multiple graphics cards, has a 32+3+3+3 phase power design, is ready for CPU and memory overclocking, has four PCIe 5.0 M.2 slots, dual 10 Gb LAN, and PCIe Q-Release Slim. Additionally, it offers reliable stability, has been verified for extensive compatibility with the latest technologies, and has been tested for 24/7 operation.

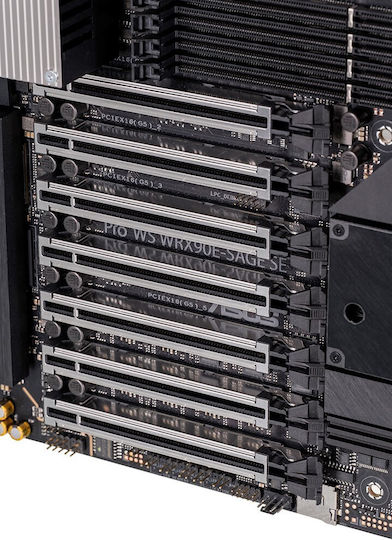

Multi-GPU Support

The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible configuration and system expandability. With high-power graphics cards, it can offer enhanced performance in modeling, simulation, and rendering applications.

Ultrasonic Networking

Featuring dual built-in 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-level connectivity with low latency.

1 Gb Ethernet dedicated to BMC.

The Pro WS WRX90E-SAGE SE features an Ethernet port for simultaneously providing fast data transfer for 1 Gbps internet data streaming to the built-in baseboard management controller.

Multiple fast USB ports

The front panel slots offer a transfer rate of up to 20 Gbps.

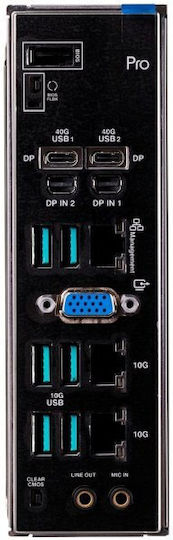

Rear panel slots:

  • 2 x USB4 40Gbps Type-C
  • 6 x USB 10Gbps Type A

M.2 PCIe 5.0 Slots

The Pro WS WRX90E-SAGE SE includes up to four built-in M.2 slots. Users working with massive files can combine multiple NVMe devices in RAID for enormous input/output bandwidth and lightning-fast data transfers.

SlimSAS Slots

The Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting SSDs, servers, and networking equipment.

Overclocking Ready

For the AMD TR5 series workstations, we offer CPU and DRAM overclocking options. ASUS has incorporated an innovative dual power supply design into the Pro WS WRX90E-SAGE SE motherboard. Along with powerful power delivery and advanced cooling modules, this motherboard exhibits increased stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater ease when pushing their systems to the limit. You can further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM combines exceptional performance with outstanding stability, setting new standards for workstation computers.

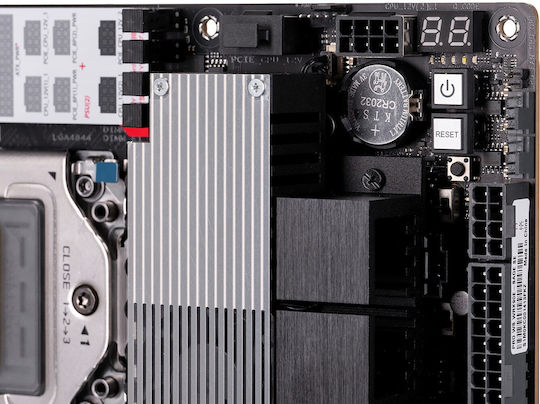

Power Stages in the VRM Area

The layout of the Pro WS WRX90E-SAGE SE voltage regulator module consists of (16*2)+3+3+3+3 power stages, providing the power and efficiency required by the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors, with stability for extreme overclocking.

Active VRM Cooling Solutions

The extruded aluminum heatsinks on the MOSFETs and chokes feature active cooling to significantly improve thermal performance.

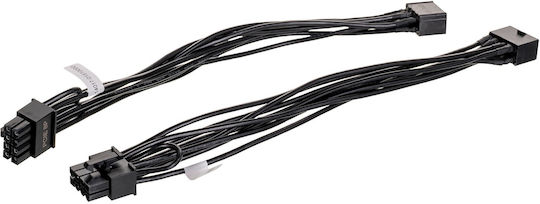

ProCool II Connectors

The ProCool II connectors ensure a stable and reliable connection with the 12V CPU input. This second generation features improved heat dissipation and a metal cover.

ECC R-DIMM memory support

The Pro WS WRX90E-SAGE SE motherboard features a robust design with eight slots for R-DIMM DDR5 memory modules with ECC support, improving system crash prevention and data corruption, ensuring that a workstation remains reliable and meets professional demands.

Remote control solutions

On Board BMC

The Pro WS WRX90E-SAGE SE workstation motherboard features compatibility with BMC connections and comes with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management capabilities for businesses and industries.

ASUS Control Center Express Control Hub

The Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for businesses, which enhances productivity and strengthens security and can help prevent unauthorized access and data leaks.

Chipset Cooling

A dedicated chipset heatsink removes heat to maintain optimal operating temperatures and features an active fan to enhance thermal performance.

Detailed Thermal Design

An optimally placed and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance.

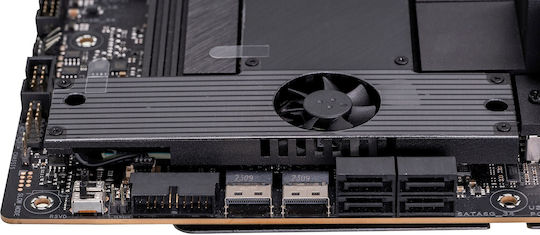

M.2 Coolers with Active Fan

An active fan provides an additional cooling method for the M.2 slots. All four M.2 slots feature large heatsinks to keep NVMe storage at optimal operating temperatures for consistent performance and reliability. The M.2 thermal pads on selected slots go even further to ensure top performance for next-generation drives.

Detailed and flexible fan control method

The Pro WS WRX90E-SAGE SE offers advanced fan control, which can be adjusted through a web UI IPMI, Q-FAN in the UEFI BIOS*, or Fan Xpert 4 in Armoury Crate for Windows*.

PCIe Q-release Slim

The new Q-release Slim design allows users to remove the graphics card by tilting the card in its slot.

This design also retains the original method of removing the graphics card by pressing down on the retention clip.

EZ DIY Design

SafeSlot & SafeDIMM

PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted the SMT manufacturing process to ensure the highest data speeds for the SafeSlot design. SafeSlot is a reinforced metal casing added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, the robust ASUS SafeDIMM cases support and protect memory modules on ASUS Pro series workstation motherboards, giving users the ability to insert modules with speed, precision, and confidence.

24/7 Reliability

Built for 24/7 operation

Optimized for 24-hour operation, the Pro WS WRX90E-SAGE SE WIFI motherboard has been tested to operate at temperatures up to 45°C and humidity of 80%, ensuring it can withstand different operating environments. A reinforced metal casing is added to a PCIe slot to keep an expansion card securely installed. Meanwhile, the robust ASUS SafeDIMM slots support and protect memory modules on ASUS Pro series workstation motherboards, allowing users to insert modules with speed, accuracy, and confidence.

Built for Reliable Protection

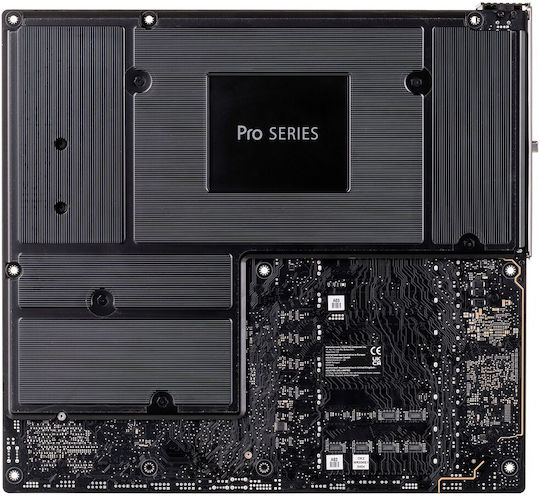

The backplate on the rear of the motherboard provides protection for the adjacent electrical components and circuits.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4
Socket
TR5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD WRX90

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
8 DIMM Slots
Memory Speeds
-

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0
7 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
4 PCIe 5.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
1 USB 2.0 Port, 6 USB 3.2 Ports
Rear USB-C outputs
2 USB 4.0 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
VGA, mini DisplayPort

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
Bios Flashback, Clear CMOS button

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

Sound

Sound Card Channels
7.1
Additional Audio Connections
-

Top Specs

Memory
8x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4
Socket
TR5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD WRX90

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
8 DIMM Slots
Memory Speeds
-

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0
7 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
4 PCIe 5.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
1 USB 2.0 Port, 6 USB 3.2 Ports
Rear USB-C outputs
2 USB 4.0 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
VGA, mini DisplayPort

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
Bios Flashback, Clear CMOS button

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

Sound

Sound Card Channels
7.1
Additional Audio Connections
-

Top Specs

Memory
8x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The Asus PRO WS WRX90E-SAGE is a high-performance motherboard, ideal for professionals seeking performance. It supports AMD Ryzen Threadripper PRO 7000 WX multi-core processors in the AMD sTR5 socket, DDR5 4-channel RAM, PCIe 5.0 M.2 drives, and PCI-Express 5.0 graphics cards for exceptional performance. It features seven PCIe 5.0 x16 slots, supports multiple graphics cards, has a 32+3+3+3 phase power design, is ready for CPU and memory overclocking, has four PCIe 5.0 M.2 slots, dual 10 Gb LAN, and PCIe Q-Release Slim. Additionally, it offers reliable stability, has been verified for extensive compatibility with the latest technologies, and has been tested for 24/7 operation.

Multi-GPU Support

The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible configuration and system expandability. With high-power graphics cards, it can offer enhanced performance in modeling, simulation, and rendering applications.

Ultrasonic Networking

Featuring dual built-in 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-level connectivity with low latency.

1 Gb Ethernet dedicated to BMC.

The Pro WS WRX90E-SAGE SE features an Ethernet port for simultaneously providing fast data transfer for 1 Gbps internet data streaming to the built-in baseboard management controller.

Multiple fast USB ports

The front panel slots offer a transfer rate of up to 20 Gbps.

Rear panel slots:

  • 2 x USB4 40Gbps Type-C
  • 6 x USB 10Gbps Type A

M.2 PCIe 5.0 Slots

The Pro WS WRX90E-SAGE SE includes up to four built-in M.2 slots. Users working with massive files can combine multiple NVMe devices in RAID for enormous input/output bandwidth and lightning-fast data transfers.

SlimSAS Slots

The Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting SSDs, servers, and networking equipment.

Overclocking Ready

For the AMD TR5 series workstations, we offer CPU and DRAM overclocking options. ASUS has incorporated an innovative dual power supply design into the Pro WS WRX90E-SAGE SE motherboard. Along with powerful power delivery and advanced cooling modules, this motherboard exhibits increased stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater ease when pushing their systems to the limit. You can further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM combines exceptional performance with outstanding stability, setting new standards for workstation computers.

Power Stages in the VRM Area

The layout of the Pro WS WRX90E-SAGE SE voltage regulator module consists of (16*2)+3+3+3+3 power stages, providing the power and efficiency required by the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors, with stability for extreme overclocking.

Active VRM Cooling Solutions

The extruded aluminum heatsinks on the MOSFETs and chokes feature active cooling to significantly improve thermal performance.

ProCool II Connectors

The ProCool II connectors ensure a stable and reliable connection with the 12V CPU input. This second generation features improved heat dissipation and a metal cover.

ECC R-DIMM memory support

The Pro WS WRX90E-SAGE SE motherboard features a robust design with eight slots for R-DIMM DDR5 memory modules with ECC support, improving system crash prevention and data corruption, ensuring that a workstation remains reliable and meets professional demands.

Remote control solutions

On Board BMC

The Pro WS WRX90E-SAGE SE workstation motherboard features compatibility with BMC connections and comes with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management capabilities for businesses and industries.

ASUS Control Center Express Control Hub

The Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for businesses, which enhances productivity and strengthens security and can help prevent unauthorized access and data leaks.

Chipset Cooling

A dedicated chipset heatsink removes heat to maintain optimal operating temperatures and features an active fan to enhance thermal performance.

Detailed Thermal Design

An optimally placed and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance.

M.2 Coolers with Active Fan

An active fan provides an additional cooling method for the M.2 slots. All four M.2 slots feature large heatsinks to keep NVMe storage at optimal operating temperatures for consistent performance and reliability. The M.2 thermal pads on selected slots go even further to ensure top performance for next-generation drives.

Detailed and flexible fan control method

The Pro WS WRX90E-SAGE SE offers advanced fan control, which can be adjusted through a web UI IPMI, Q-FAN in the UEFI BIOS*, or Fan Xpert 4 in Armoury Crate for Windows*.

PCIe Q-release Slim

The new Q-release Slim design allows users to remove the graphics card by tilting the card in its slot.

This design also retains the original method of removing the graphics card by pressing down on the retention clip.

EZ DIY Design

SafeSlot & SafeDIMM

PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted the SMT manufacturing process to ensure the highest data speeds for the SafeSlot design. SafeSlot is a reinforced metal casing added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, the robust ASUS SafeDIMM cases support and protect memory modules on ASUS Pro series workstation motherboards, giving users the ability to insert modules with speed, precision, and confidence.

24/7 Reliability

Built for 24/7 operation

Optimized for 24-hour operation, the Pro WS WRX90E-SAGE SE WIFI motherboard has been tested to operate at temperatures up to 45°C and humidity of 80%, ensuring it can withstand different operating environments. A reinforced metal casing is added to a PCIe slot to keep an expansion card securely installed. Meanwhile, the robust ASUS SafeDIMM slots support and protect memory modules on ASUS Pro series workstation motherboards, allowing users to insert modules with speed, accuracy, and confidence.

Built for Reliable Protection

The backplate on the rear of the motherboard provides protection for the adjacent electrical components and circuits.

Manufacturer

Manufacturer Details

Warnings & Safety Information
1.410,14 €
14,00 €   shipping cost
