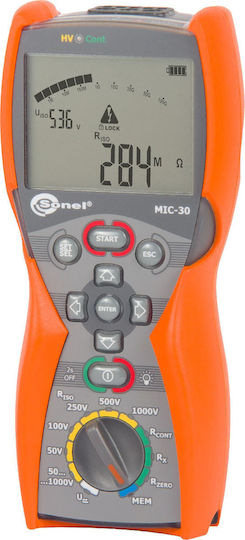

The MIC-30 tester is designed for measuring insulation resistance with voltages: 50, 100, 250, 500, 1000 V. The device features smooth adjustment in the range of 50…1000 V in 10V increments.

Additionally, it offers:

• Capacitance measurement during RISO measurement
• Leakage current measurement
• Measurement of protective and equivalent continuity with current > 200 mA
• Low voltage measurement of continuity and circuit resistance
• Measurement of direct and alternating voltages

The ability to store measurement results and cooperate with a computer facilitates the creation of protocols. The ergonomic casing and intuitive operation are significant for a large number of measurements. All settings are made using a rotary switch.

The device features a backlit keyboard/display and a durable, wear-resistant casing with IP67 protection, making it easy to use in adverse conditions. Additionally, you can program 3 length measurement times for insulation resistance, calculating 2 absorption coefficients (AB1, AB2, or DAR, PI).

The device monitors operating conditions and discharges the object after measurement. It comes with all necessary accessories for performing measurements and is delivered in an aesthetic case with a calibration certificate.

Technical specifications:

• Selectable measurement voltage: 50, 100, 250, 500, 1000 V or set in the range of 50…1000 V with a resolution of 10 V
• Automatic measurement at sockets with a UNI-Schuko adapter
• Continuous indication of the measured insulation resistance or leakage current
• Automatic discharge of the capacity in advance
• Audible identification of time intervals of five seconds
• Three-wire measurement
