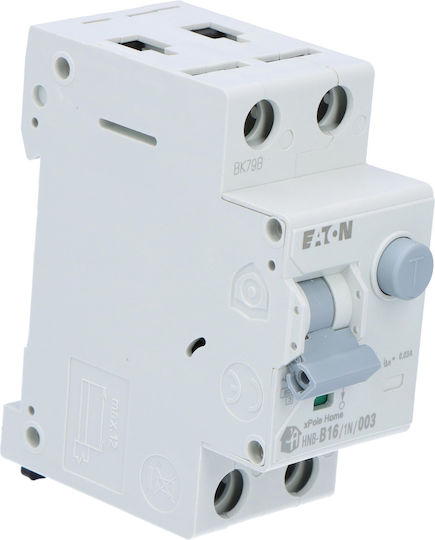

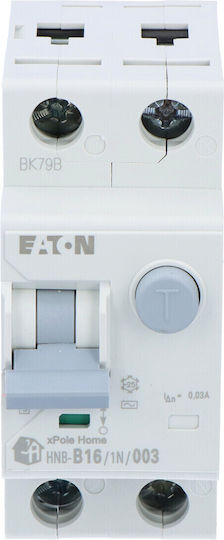

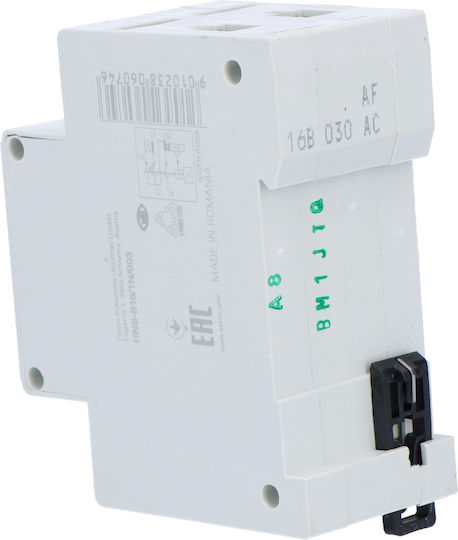

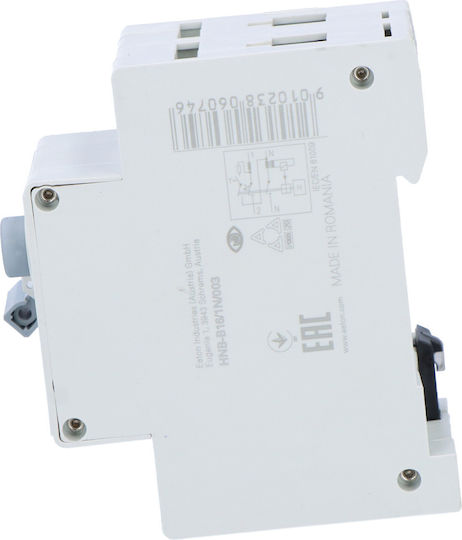

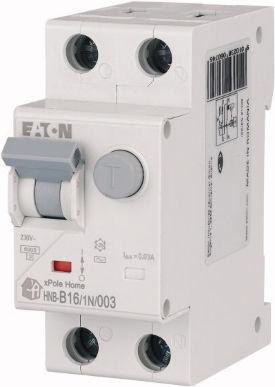

Eaton Earth Leakage Phase Relay 16A Bipolar with Voltage 500V
Phase Relays

Eaton Earth Leakage Phase Relay 16A Bipolar with Voltage 500V

Residual current switch

  • Symbol: HNB-B16/1N/003
  • Rated current: 16A
  • Number of poles: 1P+N
  • Rated residual current: 30mA
  • Type: AC
  • Short-circuit power: 6kA
  • Catalog number: 195121
  • ACC frequency: 50 Hz
  • ...

Residual current switch

  • Symbol: HNB-B16/1N/003
  • Rated current: 16A
  • Number of poles: 1P+N
  • Rated residual current: 30mA
  • Type: AC
  • Short-circuit power: 6kA
  • Catalog number: 195121
  • ACC frequency: 50 Hz
  • Sensitivity: AC
  • Mounting depth: 69.5 mm
  • Overvoltage category: 3
  • Energy limitation category: 3
  • Insulation rated voltage Ui: 500 V
  • Pulsed current withstand: 0.25 kA
  • ...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Residual current switch

  • Symbol: HNB-B16/1N/003
  • Rated current: 16A
  • Number of poles: 1P+N
  • Rated residual current: 30mA
  • Type: AC
  • Short-circuit power: 6kA
  • Catalog number: 195121
  • ACC frequency: 50 Hz
  • Sensitivity: AC
  • Mounting depth: 69.5 mm
  • Overvoltage category: 3
  • Energy limitation category: 3
  • Insulation rated voltage Ui: 500 V
  • Pulsed current withstand: 0.25 kA
  • Single core cable cross-section: 1 ... 25 mm²
  • Multi-core cable cross-section: 1 ... 25 mm²
  • Voltage type: AC
  • Protection degree (IP): IP20
  • Pollution degree: 2
  • Width expressed in number of units: 2
  • Ambient temperature under operating conditions: -25 ... 40 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Earth Leakage
Number of Poles
2
Voltage
500 V
Nominal Voltage
16 A
Leakage Current
30 mA
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type AC

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Residual current switch

  • Symbol: HNB-B16/1N/003
  • Rated current: 16A
  • Number of poles: 1P+N
  • Rated residual current: 30mA
  • Type: AC
  • Short-circuit power: 6kA
  • Catalog number: 195121
  • ACC frequency: 50 Hz
  • Sensitivity: AC
  • Mounting depth: 69.5 mm
  • Overvoltage category: 3
  • Energy limitation category: 3
  • Insulation rated voltage Ui: 500 V
  • Pulsed current withstand: 0.25 kA
  • Single core cable cross-section: 1 ... 25 mm²
  • Multi-core cable cross-section: 1 ... 25 mm²
  • Voltage type: AC
  • Protection degree (IP): IP20
  • Pollution degree: 2
  • Width expressed in number of units: 2
  • Ambient temperature under operating conditions: -25 ... 40 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Earth Leakage
Number of Poles
2
Voltage
500 V
Nominal Voltage
16 A
Leakage Current
30 mA
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type AC

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

60,97 €
14,00 €   shipping cost
