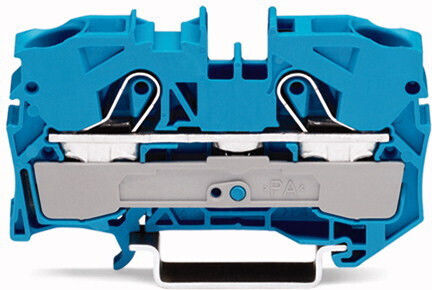

2-wire power plug 36.9x67.8 mm blue

• Power socket for Ex e II applications
• Color: blue
• Ratings: IEC/EN 60947-7-1
• Total number of terminals: 2
• Total number of potentials: 1
• Pollution degree: 3
• Rated voltage EN: 800V
• Rated surge voltage: 8kV
• Rated current (1): 57A
• Rated current (2): 76A
• Rated voltage Ex e II: 550V
• Rated current Ex e II: 51A
• Cable connection technology: Push-in CAGE CLAMP®
• Nominal diameter: 10mm²
• Single-wire assembly with tools: 0.5 … 16 mm² / 20 … 6 AWG
• Single-wire plug-in arrangement without tools: 2.5 … 16 mm² / 14 … 6 AWG
• Cable assembly with tools: 0.5 … 25 mm² / 20 … 4 AWG
• Cable with sleeve min: Plug assembly without tools: 2.5 mm² / 14 AWG
• Cable stripping length: 17-19 mm
• Wiring type: front wiring
• Construction: horizontal construction
• Description level: description in the middle/side
• Insulating material: polyamide 66 (Pa 66)
• Fire load: 0.279 MJ
• Weight: 17.336g
• Width: 10mm

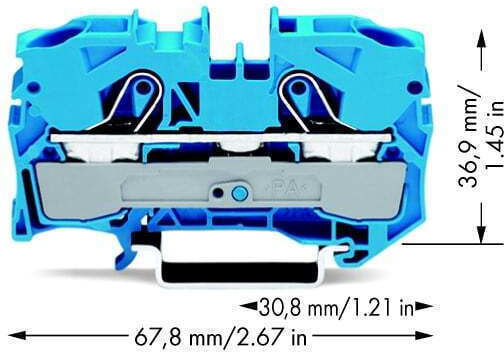

• Height: 36.9 mm
• Height from the top edge: 36.9 mm
• Depth: 67.8 mm
• Mounting type: TS 35 rail
