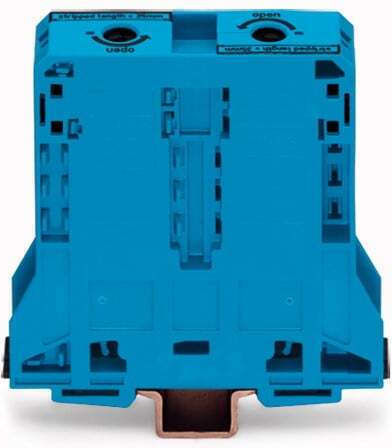

Power plug 2 wires 25x107 mm blue - 285-194

• Total number of terminals: 2
• Total number of dynamic: 1
• Color: blue
• Rated according to 1: IEC/EN 60947-7-1
• Pollution degree: 3
• Rated voltage EN: 1000 V
• Rated impulse voltage: 8 kV
• Rated current: 232 A
• Cable connection technique: CLAMPING POWER
• Single wire, assembly with tools: 25 … 95 mm² / 4 … 4/0 AWG
• Cable stripping length: 35 mm
• Wiring type: side wiring
• Construction: horizontal construction
• Insulating material: polyamide 66 (PA 66)
• Fire load: 3.532 MJ
• Weight: 264.291 g
• Width: 25 mm
• Height: 101 mm
• Height from the top of the rail: 101 mm
• Depth: 107 mm
• Rail mounting type: TS 35 x 15
• Safety note: for TS 35x15 rail only
