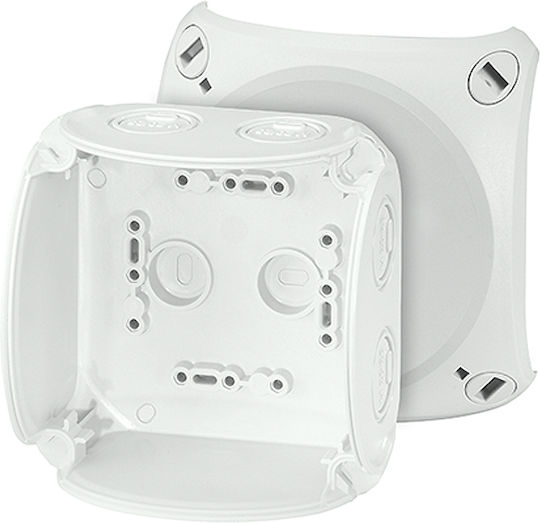

Hensel Surface Mounted Electrical Box Watertight IP67 in Gray Color
Junction Boxes

Hensel Surface Mounted Electrical Box Watertight IP67 in Gray Color

External junction box 104x104x70mm IP66/67 gray - KF 0400 G

  • Without clamps
  • Cable entry via knock-out, order cable glands AKM separately
  • Resistant to atmospheric effects (UV solar radiation, rain,...

External junction box 104x104x70mm IP66/67 gray - KF 0400 G

  • Without clamps
  • Cable entry via knock-out, order cable glands AKM separately
  • Resistant to atmospheric effects (UV solar radiation, rain, temperature, mechanical impacts, etc.)
  • Resistant to seawater
  • Ability to seal the cover without additional parts
  • Includes external handles for mounting the box
  • ...
See full description See full description
Review the product
Product report

Description

Description

External junction box 104x104x70mm IP66/67 gray - KF 0400 G

  • Without clamps
  • Cable entry via knock-out, order cable glands AKM separately
  • Resistant to atmospheric effects (UV solar radiation, rain, temperature, mechanical impacts, etc.)
  • Resistant to seawater
  • Ability to seal the cover without additional parts
  • Includes external handles for mounting the box
  • Color: gray, RAL 7035
  • Protection class: IP 66 / IP 67 (submersion up to 1 m max.)
  • Material: PC (polycarbonate)
  • Mounting width 83 mm
  • Mounting height 83 mm
  • Maximum installation depth 55 mm
  • Width 104 mm
  • Height 104 mm
  • Depth 70 mm
  • Weight 0.145 kg
  • According to standard IEC 60 670-22
  • According to standard DNV GL - Certificate No.: TAE00000EE
  • Approval Russian Register 250-A-1180-108795
  • Surface, granted installation
  • Model: 1x

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Placement
Outdoor
Branching
No
Plasterboard
No
Protection Certification
IP67

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
104 mm
Width
104 mm
Height
70 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

External junction box 104x104x70mm IP66/67 gray - KF 0400 G

  • Without clamps
  • Cable entry via knock-out, order cable glands AKM separately
  • Resistant to atmospheric effects (UV solar radiation, rain, temperature, mechanical impacts, etc.)
  • Resistant to seawater
  • Ability to seal the cover without additional parts
  • Includes external handles for mounting the box
  • Color: gray, RAL 7035
  • Protection class: IP 66 / IP 67 (submersion up to 1 m max.)
  • Material: PC (polycarbonate)
  • Mounting width 83 mm
  • Mounting height 83 mm
  • Maximum installation depth 55 mm
  • Width 104 mm
  • Height 104 mm
  • Depth 70 mm
  • Weight 0.145 kg
  • According to standard IEC 60 670-22
  • According to standard DNV GL - Certificate No.: TAE00000EE
  • Approval Russian Register 250-A-1180-108795
  • Surface, granted installation
  • Model: 1x

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outdoor
Branching
No
Plasterboard
No
Protection Certification
IP67

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
104 mm
Width
104 mm
Height
70 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
