ETI Automatic Circuit Breaker 16A Triple-pole AC/DC 002145516
Automatic Circuit Breaker

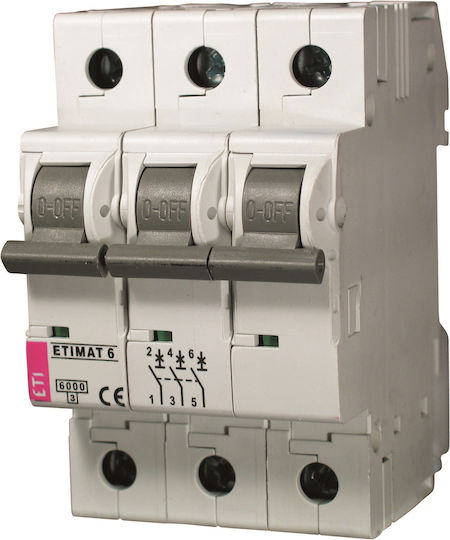

ETI Automatic Circuit Breaker 16A Triple-pole AC/DC 002145516

ETIMAT 6 Circuit Breaker - 3p C16

  • Number of poles: 3p
  • Release characteristic: C
  • Nominal current IN: 16A
  • Short-circuit breaking capacity: 6kA
  • Nominal voltage UN: 230/400V 50/60Hz, max 60V DC
  • Nominal...

ETIMAT 6 Circuit Breaker - 3p C16

  • Number of poles: 3p
  • Release characteristic: C
  • Nominal current IN: 16A
  • Short-circuit breaking capacity: 6kA
  • Nominal voltage UN: 230/400V 50/60Hz, max 60V DC
  • Nominal insulation voltage Ui: 500V under normal conditions
  • Maximum operating voltage Umax: 440V AC
  • Minimum operating voltage Umin: 12V AC
  • Energy limitation class: 3
  • ...
See full description See full description
Review the product
Product report

Description

Description

ETIMAT 6 Circuit Breaker - 3p C16

  • Number of poles: 3p
  • Release characteristic: C
  • Nominal current IN: 16A
  • Short-circuit breaking capacity: 6kA
  • Nominal voltage UN: 230/400V 50/60Hz, max 60V DC
  • Nominal insulation voltage Ui: 500V under normal conditions
  • Maximum operating voltage Umax: 440V AC
  • Minimum operating voltage Umin: 12V AC
  • Energy limitation class: 3
  • Cable connection: 1 - 25 mm², (max 3 Nm)
  • Enclosure: non-flammable, thermally resistant plastic
  • Color: Grey RAL 7035
  • Installation method: on TH 35 rail arrangement
  • Operating position: any
  • Unit width: 18 mm
  • Sealing position: ON-OFF
  • Operating temperature: from -25°C to +55°C
  • Protection degree: IP20

ETIMAT 6 switches are used as protection for electrical installations in residential, public, and industrial areas.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
3
Rated Current
16 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

ETIMAT 6 Circuit Breaker - 3p C16

  • Number of poles: 3p
  • Release characteristic: C
  • Nominal current IN: 16A
  • Short-circuit breaking capacity: 6kA
  • Nominal voltage UN: 230/400V 50/60Hz, max 60V DC
  • Nominal insulation voltage Ui: 500V under normal conditions
  • Maximum operating voltage Umax: 440V AC
  • Minimum operating voltage Umin: 12V AC
  • Energy limitation class: 3
  • Cable connection: 1 - 25 mm², (max 3 Nm)
  • Enclosure: non-flammable, thermally resistant plastic
  • Color: Grey RAL 7035
  • Installation method: on TH 35 rail arrangement
  • Operating position: any
  • Unit width: 18 mm
  • Sealing position: ON-OFF
  • Operating temperature: from -25°C to +55°C
  • Protection degree: IP20

ETIMAT 6 switches are used as protection for electrical installations in residential, public, and industrial areas.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
16 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

24,39 €
