Hensel Surface Mounted Electrical Box Watertight IP66 in Gray Color
Junction Boxes

Hensel Surface Mounted Electrical Box Watertight IP66 in Gray Color

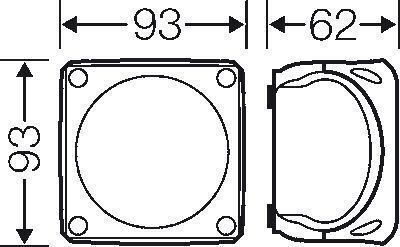

Junction box 93 x 93 x 62 mm without terminals IP66 gray DK 0200 GZ. The box features flexible sealing membranes with a sealing range of Ø 6.0-15.0 mm and cover sealing without additional components....

Junction box 93 x 93 x 62 mm without terminals IP66 gray DK 0200 GZ. The box features flexible sealing membranes with a sealing range of Ø 6.0-15.0 mm and cover sealing without additional components. Wall mounting brackets and a strap for connecting the cover to the base are included.

  • Material: PP (polypropylene)
  • Protection rating: IP 66
  • Mounting width: 74...
See full description See full description
Review the product
Product report

Description

Description

Junction box 93 x 93 x 62 mm without terminals IP66 gray DK 0200 GZ. The box features flexible sealing membranes with a sealing range of Ø 6.0-15.0 mm and cover sealing without additional components. Wall mounting brackets and a strap for connecting the cover to the base are included.

  • Material: PP (polypropylene)
  • Protection rating: IP 66
  • Mounting width: 74 mm
  • Installation height: 74 mm
  • Maximum mounting depth: 47 mm
  • Width: 93 mm
  • Height: 93 mm
  • Depth: 62 mm
  • Weight: 0.099 kg according to standard IEC 60670-22

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Placement
Outdoor
Branching
No
Plasterboard
No
Protection Certification
IP66

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
93 mm
Width
93 mm
Height
62 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Junction box 93 x 93 x 62 mm without terminals IP66 gray DK 0200 GZ. The box features flexible sealing membranes with a sealing range of Ø 6.0-15.0 mm and cover sealing without additional components. Wall mounting brackets and a strap for connecting the cover to the base are included.

  • Material: PP (polypropylene)
  • Protection rating: IP 66
  • Mounting width: 74 mm
  • Installation height: 74 mm
  • Maximum mounting depth: 47 mm
  • Width: 93 mm
  • Height: 93 mm
  • Depth: 62 mm
  • Weight: 0.099 kg according to standard IEC 60670-22

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outdoor
Branching
No
Plasterboard
No
Protection Certification
IP66

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
93 mm
Width
93 mm
Height
62 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

11,04 €
14,00 €   shipping cost
