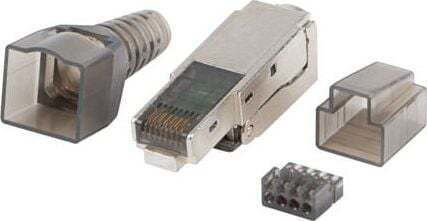

Tool-less RJ45 network plug from Lanberg. The self-locking connector is designed for quick wire and twisted pair connections.

The tool-less design allows for fast assembly without the need for tools. The connection point is protected from wires slipping out of the terminals. A guide, a color-coded sticker, a cable cover - all these make the assembly of an RJ45 cable easy.

Features:

• Tool-less assembly
• Color-coded wire guide
• Fully compliant with TIA/EIA-568A/B
• Cat.6A FTP

Specifications:

• Suitable for wire from AWG 26/1 to AWG 22/1
• Meets Class E standards ISO/IEC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09
• Adjustable sheath, suitable for cables with a diameter of 6.0 to 9.0 mm
• Operating temperature: -25 to 68 °C
• Humidity: 85%
• Pressure: 70 to 106 KPa
• Insulation resistance: 20M
• Resistance: 1000M
• Voltage endurance: DC 1000V (AC 700V)
• Reusable
• 3 times gold-plated phosphor bronze
• Durability: approx. 750 cycles

Product specification:

• Category ICT: Cat. 6
• Shielding type: F/UTP
• Connections: RJ-45
• Material: ABS + metal
• Color: Silver
