Hikvision Wired Infrared Curtain Motion Sensor 5° Detection Angle 6m Scope with Antimasking
Motion Sensors

Hikvision Wired Infrared Curtain Motion Sensor 5° Detection Angle 6m Scope with Antimasking

The AM Curtain PIR Detector DS-PDC10AM-VG3 features a sleek design for installation in window frames and is weather-resistant with an IP65 rating for outdoor use.

It includes active IR anti-masking...

The AM Curtain PIR Detector DS-PDC10AM-VG3 features a sleek design for installation in window frames and is weather-resistant with an IP65 rating for outdoor use.

It includes active IR anti-masking and has a wall-mounted range of up to 10 meters and a ceiling-mounted range of up to 6 meters. It has a normally closed alarm output and an LED indicator light...

See full description See full description

  • Login

    Wired

    It connects to the installation system via cable.

  • Detection Type

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.

  • Protection Certification

    IP65

    Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial spaces.

  • Antimasking

    Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.

    1

  • Curtain

    With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.

    1
  • See all
Review the product
Product report

Description

Description

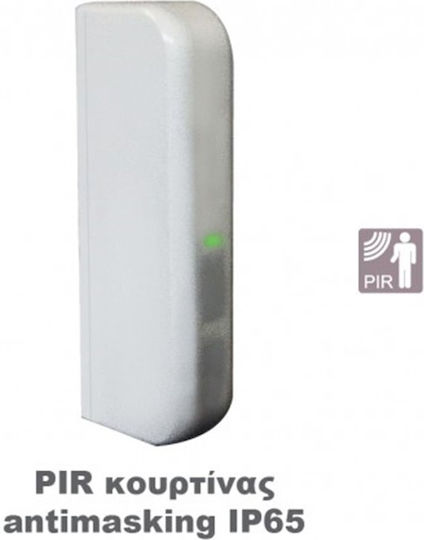

The AM Curtain PIR Detector DS-PDC10AM-VG3 features a sleek design for installation in window frames and is weather-resistant with an IP65 rating for outdoor use.

It includes active IR anti-masking and has a wall-mounted range of up to 10 meters and a ceiling-mounted range of up to 6 meters. It has a normally closed alarm output and an LED indicator light with blue color (alarm) and green + orange (masked).

Power consumption is 22mA maximum, with a supply voltage of 9 to 16 VDC, typically 12 VDC. Operating temperatures range from -25 °C to 60 °C. Its dimensions are 29.2mm × 134.4mm × 39.5mm, and it weighs 77.5g. It comes with an L-shaped adapter for indoor and outdoor applications.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
5 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP65

Protection Certification

IP65
Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial spaces.
Scope
6 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
Yes

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The AM Curtain PIR Detector DS-PDC10AM-VG3 features a sleek design for installation in window frames and is weather-resistant with an IP65 rating for outdoor use.

It includes active IR anti-masking and has a wall-mounted range of up to 10 meters and a ceiling-mounted range of up to 6 meters. It has a normally closed alarm output and an LED indicator light with blue color (alarm) and green + orange (masked).

Power consumption is 22mA maximum, with a supply voltage of 9 to 16 VDC, typically 12 VDC. Operating temperatures range from -25 °C to 60 °C. Its dimensions are 29.2mm × 134.4mm × 39.5mm, and it weighs 77.5g. It comes with an L-shaped adapter for indoor and outdoor applications.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
5 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP65

Protection Certification

IP65
Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial spaces.
Scope
6 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
Yes

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
