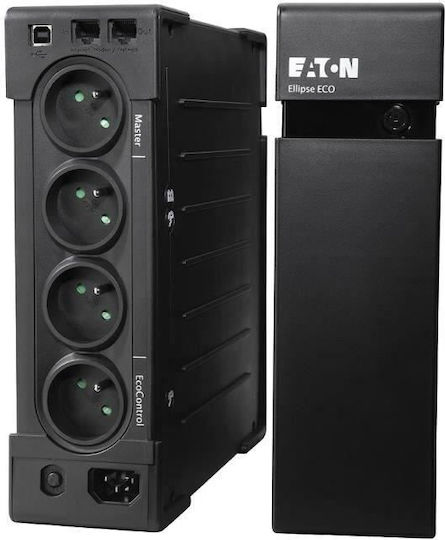

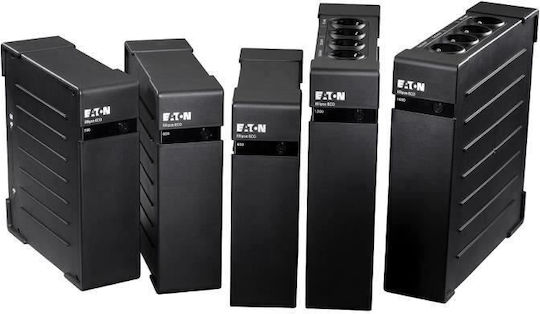

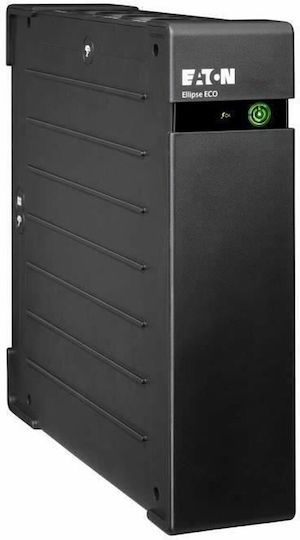

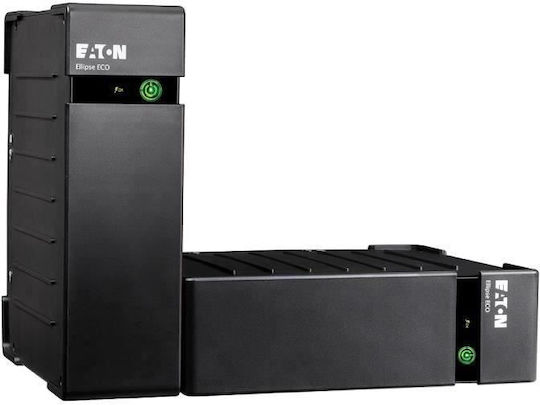

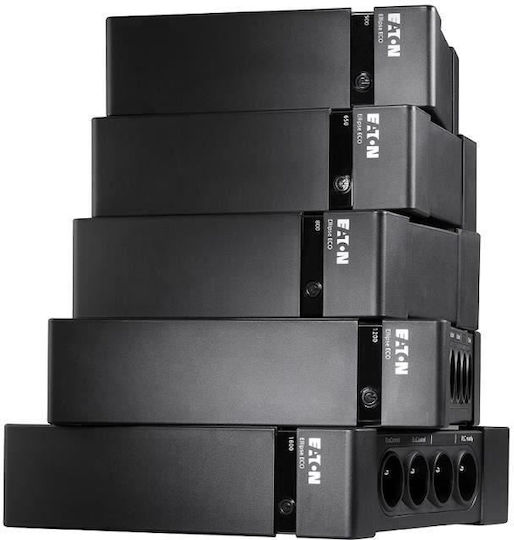

Eaton Ellipse ECO USB FR UPS 1600VA 1000W
UPS

Eaton Ellipse ECO USB FR UPS 1600VA 1000W

Features:

  • UPS topology: Standby (Offline)
  • Output power capacity (VA): 1.6kVA
  • Output power: 1000W
  • Input operating voltage (min): 161V
  • Input operating voltage (max): 284V
  • Input frequency: 50/60Hz
  • ...

Features:

  • UPS topology: Standby (Offline)
  • Output power capacity (VA): 1.6kVA
  • Output power: 1000W
  • Input operating voltage (min): 161V
  • Input operating voltage (max): 284V
  • Input frequency: 50/60Hz
  • Output operating voltage (min): 220V
  • Output operating voltage (max): 240V
  • Emergency power off (EPO): NO
  • Surge protection: YES
  • Surge protection features: Fax, Modem,...
See full description See full description

  • Size

    Tower

    Form that resembles a classic tower (Tower case) computer. Suitable for spaces with sufficient height and depth. Usually larger and more powerful UPS.

  • AC Outlets

    The AC outlets are the power output sockets where you connect the devices you want to protect and supply with power through the UPS.

  • Power (Watt)

    Indicates the actual power that the UPS can provide to devices. It is expressed in Watts (W) and is the most reliable indicator to know how much load (e.g. PC, monitors, router) it can support.
  • See all
Review the product
Product report

Description

Description

Features:

  • UPS topology: Standby (Offline)
  • Output power capacity (VA): 1.6kVA
  • Output power: 1000W
  • Input operating voltage (min): 161V
  • Input operating voltage (max): 284V
  • Input frequency: 50/60Hz
  • Output operating voltage (min): 220V
  • Output operating voltage (max): 240V
  • Emergency power off (EPO): NO
  • Surge protection: YES
  • Surge protection features: Fax, Modem, Network, Telephone
  • Audible alarms: YES
  • Audible alarm functions: Battery replacement
  • AC outlet types: Type E
  • Power plug: C14 coupler
  • Number of AC outlets: 8
  • Number of USB 2.0 ports: 1
  • Modem (RJ-11) ports: 1
  • Number of ethernet LAN (RJ-45) ports: 1
  • Battery technology: Sealed Lead Acid (VRLA)
  • Typical backup time at half load: 11 minutes
  • Hot-swap batteries: NO
  • Automatic battery test: YES
  • Cold start: YES
  • Form factor: Tower
  • Product color: Black
  • Rack capacity: 2U
  • Communication LED indicators: Battery replacement
  • Safety: IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
  • Width: 81mm
  • Depth: 312mm
  • Height: 305mm
  • Weight: 7800g
  • Pre-installed software: Eaton Intelligent Power
  • Harmonized System (HS) code: 85078000
  • Input connection type: FR
  • Nominal output voltage: 220-240V
  • Nominal input voltage: 230V
  • Compatible operating systems: Windows 7/Vista/XP, Mac OS X, Linux
  • Overload protection: YES

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Power (VA)
1600 VA

Power (VA)

Indicates the maximum electrical load that the UPS can support and is measured in Volt-Amperes (VA). It is the apparent power of the UPS and is used to compare the size/category of UPS units.

Note: VA is not the actual power that devices can consume. To determine what you can connect, always check the Power (W) as well.

Usage Examples:

  • 800VA 480–560 W Router, modem, small computer, LED lighting
  • 1000VA 600–700 W Office PC with monitor, small printer, NAS
  • 1500VA 900–1050 W Powerful PC or gaming, multiple office devices
  • 2000VA 1200–1400 W Workstation, small server, cash register + POS
  • 3000VA 1800–2100 W Server, rack equipment, professional labs, studio
Power (Watt)
1000 W

Power (Watt)

Indicates the actual power that the UPS can provide to devices. It is expressed in Watts (W) and is the most reliable indicator to know how much load (e.g. PC, monitors, router) it can support.
Size
Tower

Size

Tower
Form that resembles a classic tower (Tower case) computer. Suitable for spaces with sufficient height and depth. Usually larger and more powerful UPS.
Noise Level
-
Display Screen
-

Connectivity

USB
Yes
AC outlets
4

AC outlets

The AC outlets are the power output sockets where you connect the devices you want to protect and supply with power through the UPS.
Extra Ports
RJ-45, RJ-11

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Features:

  • UPS topology: Standby (Offline)
  • Output power capacity (VA): 1.6kVA
  • Output power: 1000W
  • Input operating voltage (min): 161V
  • Input operating voltage (max): 284V
  • Input frequency: 50/60Hz
  • Output operating voltage (min): 220V
  • Output operating voltage (max): 240V
  • Emergency power off (EPO): NO
  • Surge protection: YES
  • Surge protection features: Fax, Modem, Network, Telephone
  • Audible alarms: YES
  • Audible alarm functions: Battery replacement
  • AC outlet types: Type E
  • Power plug: C14 coupler
  • Number of AC outlets: 8
  • Number of USB 2.0 ports: 1
  • Modem (RJ-11) ports: 1
  • Number of ethernet LAN (RJ-45) ports: 1
  • Battery technology: Sealed Lead Acid (VRLA)
  • Typical backup time at half load: 11 minutes
  • Hot-swap batteries: NO
  • Automatic battery test: YES
  • Cold start: YES
  • Form factor: Tower
  • Product color: Black
  • Rack capacity: 2U
  • Communication LED indicators: Battery replacement
  • Safety: IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
  • Width: 81mm
  • Depth: 312mm
  • Height: 305mm
  • Weight: 7800g
  • Pre-installed software: Eaton Intelligent Power
  • Harmonized System (HS) code: 85078000
  • Input connection type: FR
  • Nominal output voltage: 220-240V
  • Nominal input voltage: 230V
  • Compatible operating systems: Windows 7/Vista/XP, Mac OS X, Linux
  • Overload protection: YES

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Power (VA)
1600 VA

Power (VA)

Indicates the maximum electrical load that the UPS can support and is measured in Volt-Amperes (VA). It is the apparent power of the UPS and is used to compare the size/category of UPS units.

Note: VA is not the actual power that devices can consume. To determine what you can connect, always check the Power (W) as well.

Usage Examples:

  • 800VA 480–560 W Router, modem, small computer, LED lighting
  • 1000VA 600–700 W Office PC with monitor, small printer, NAS
  • 1500VA 900–1050 W Powerful PC or gaming, multiple office devices
  • 2000VA 1200–1400 W Workstation, small server, cash register + POS
  • 3000VA 1800–2100 W Server, rack equipment, professional labs, studio
Power (Watt)
1000 W

Power (Watt)

Indicates the actual power that the UPS can provide to devices. It is expressed in Watts (W) and is the most reliable indicator to know how much load (e.g. PC, monitors, router) it can support.
Size
Tower

Size

Tower
Form that resembles a classic tower (Tower case) computer. Suitable for spaces with sufficient height and depth. Usually larger and more powerful UPS.
Noise Level
-
Display Screen
-

Connectivity

USB
Yes
AC outlets
4

AC outlets

The AC outlets are the power output sockets where you connect the devices you want to protect and supply with power through the UPS.
Extra Ports
RJ-45, RJ-11

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
