Technical Data

• Brand: GLOBOSTAR LED LIGHTING AND ACCESSORIES GROUP
• Series: LED DIMMERS Series

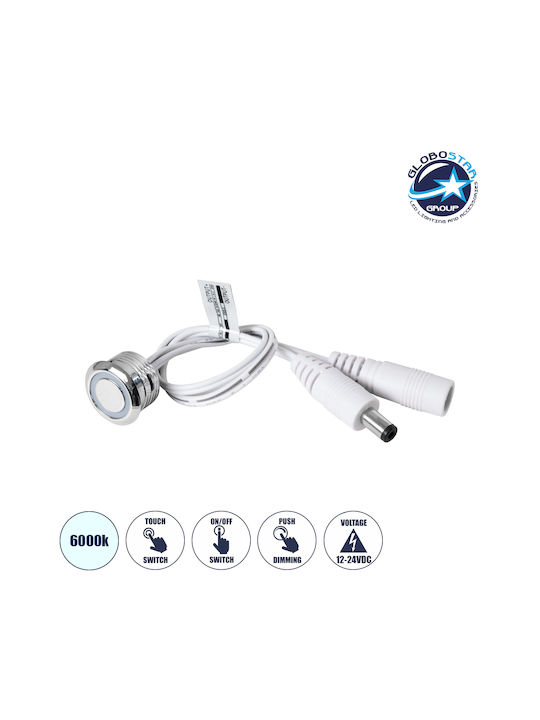

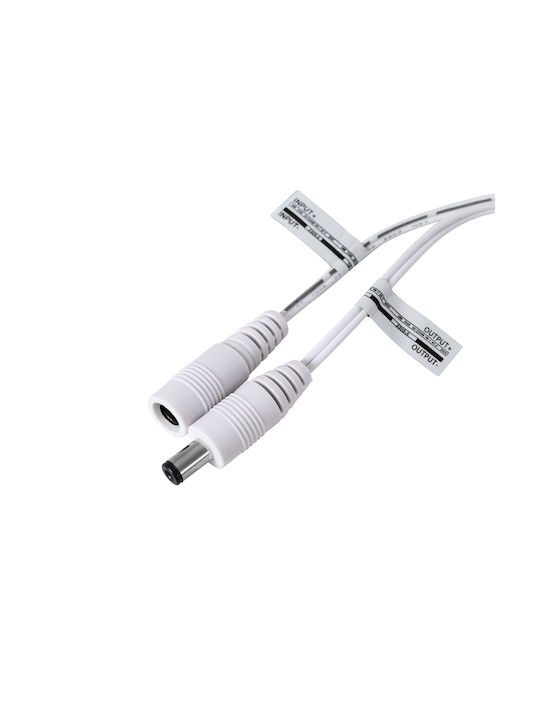

• Product Name: TOUCH & PUSH DIMMER
• Category/Product Type: Dimmer for LED Products
• Material: Aluminum & Thermoplastic
• Input Voltage: DC 12-24V
• Output Voltage: DC 12-24V
• Output Channels: 1 Channel
• Maximum Load in A per Channel: 4A
• Maximum Load in Watt per Channel: 96 W
• Maximum Total Load in A: 4A
• Maximum Total Load in Watt: 94 W
• WiFi Connectivity: No
• DMX Connectivity: No
• RF 2.4GHz Connectivity: No
• Wireless Remote Control: No
• Compatible Wireless Remote Control: No
• Operating Temperature Range: -20…+60 °C
• Dimmable: Yes
• Protection Rating: IP20
• Nominal Lifespan: 50000 Hours
• Number of Switching Cycles: 50000 On / Off Cycles
• Certificates & Standards: CE EMC Directive 2014/30/EU, RoHS 2 Directive 2011/65/EU
• 100% Start Time: -

Dimensions & Weight

• Product Dimensions: D2 x H1.2cm
• Product Weight: 13g
• Packaging Type: GloboStar® Label
• Quantity per Package: 1 Piece
• Quantity per Master Package (Box): 20 Pieces
• Package Dimensions: L17.5 x W10 x H1.7cm
• Product Weight with Packaging: 18g
• Master Package Dimensions (Box): L30 x W20 x H5cm
• Net Weight of Master Package (Box): 335g
• Volumetric Weight of Master Package (Box): 600g
• Shipping Method: By Any Means (Courier or Transport)
