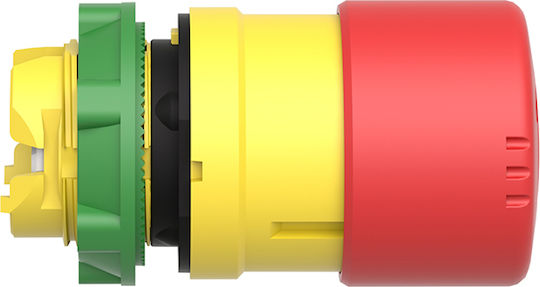

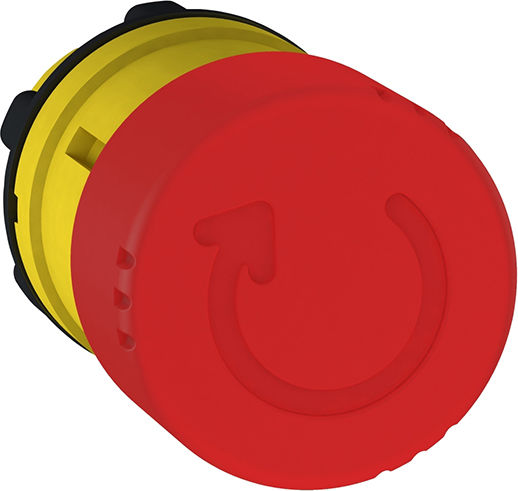

Red mushroom push button with rotation (ZB5AS834).

• Key parameters of product range: Harmony XB5.
• Type of product or component: Head.
• Purpose of the device: Emergency stop.
• Short name of the device: ZB5.
• Material of grille: Plastic material.
• Mounting diameter: 22 mm.
• Sales per indivisible number: 1.
• Shape of the signaling element head: Round.
• Type of push element: Ratchet and lock action.
• Reset (return): Unlocking by rotation.
• Type of actuator element: Red mushroom Ø 30 mm without marking.
• Supplementary parameters: Total width CAD 30 mm, Total height CAD 30 mm, Total depth CAD 57 mm.
• Product weight: 0.042 kg.
• Mechanical endurance: 300,000 cycles.
• Station name: XALD 1...5 notches, XALK 1...5 notches.
• Electrical assembly code: C11.
