Wired Garage Door Photocell Sensor with Range 20m
Garage Door Photocell Sensors

Wired Garage Door Photocell Sensor with Range 20m Code: AG574

Wired garage door photocells with a range of 20m, in black color, 4.9x7.6x2.2 cm.

See full description
Product report

Description

Description

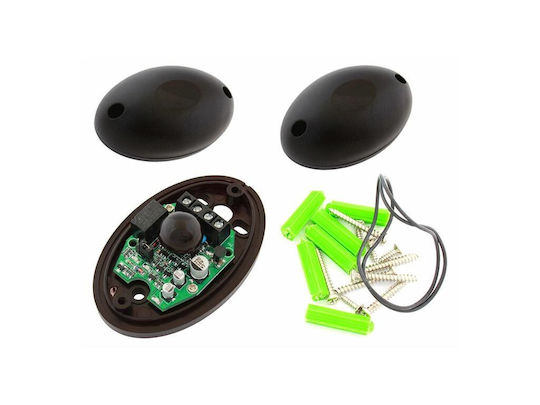

Photocell - Infrared barrier consisting of a transmitter and a receiver. Used in automation for gates or garages (for opening and closing them) and in alarm systems.

Details

  • Very easy to install and operate.
  • The receiver and transmitter are waterproof and can successfully work outdoors.
  • 2 relay operation modes: NO (normally open) and NC (normally closed), which can be easily set with a jumper.
  • Additional mounting pins included.
  • When the infrared beam is blocked, the receiver's relay is activated.

Features

  • Power Supply: 12-24V DC or AC
  • Photocell Range: up to 20 meters between sensors
  • Mounting Height: from 20 cm to 200 cm
  • Maximum Relay Load (receiver): up to 1A 36V
  • 2 Relay Operating Modes: NO (normally open) and NC (normally closed)
  • Infrared Wavelength: 940nm
  • Frequency: 1.92 KHz
  • Power Consumption - Transmitter: 15mA
  • Power Consumption - Receiver: 30mA
  • Dimensions: 4.9x7.6x2.2 cm
  • Black color

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
AG574
Range
20 m
Operation Mode
Wired
Reflector
No

Reflector

Replaces the second receiver (photocell). Works without electrical power. Ideal for locations without power supply.
Waterproof
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (5)

Reviews

3.0
5
3.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 1
  4. 2 stars
    0
  5. 2
Review this product
  • Is it easy to install?
  • Quality
  • Value for money
  • koroellas
    1
    koroellas

    Verified purchase

    I bought them for a 3-meter garage door. They are completely useless. When the sun hits them, they get stuck and do not work.
