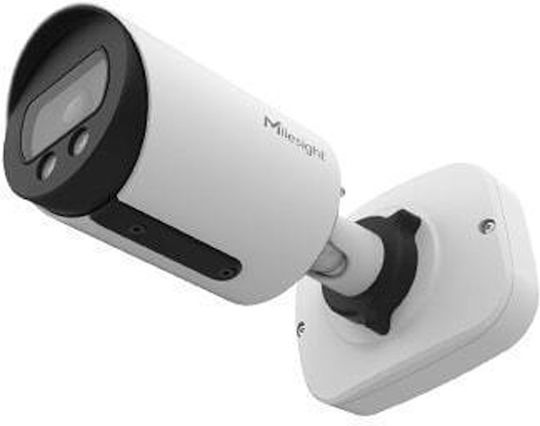

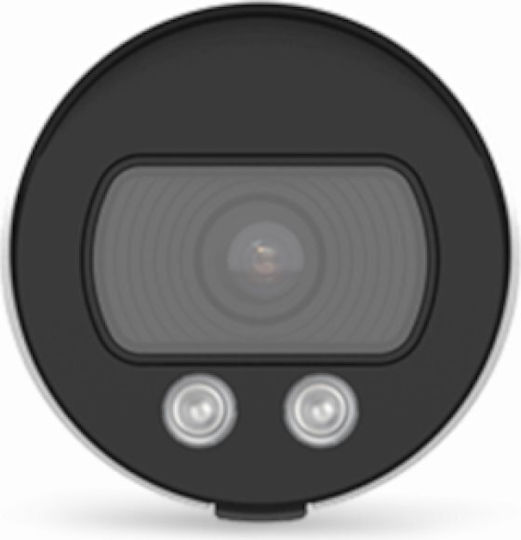

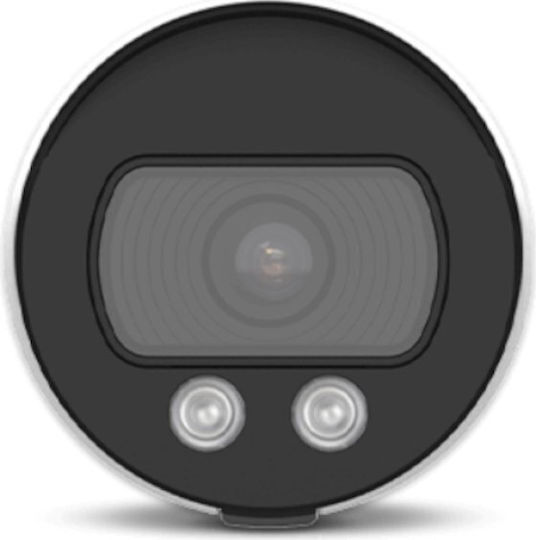

Milesight MS-C5364-UPD IP Surveillance Camera Full HD+ 5MP Waterproof with Lens 2.8mm
Surveillance Cameras

Milesight MS-C5364-UPD IP Surveillance Camera Full HD+ 5MP Waterproof with Lens 2.8mm

Features:

  • 1/3” Progressive Scan CMOS Image Sensor
  • Min. illumination 0.002 Lux @F1.0
  • Lens 2.8 mm
  • Super WDR up to 120dB
  • H.265 /H.264 High-Efficiency Video Coding
  • Built-in ICR filter for Day/Night...

Features:

  • 1/3” Progressive Scan CMOS Image Sensor
  • Min. illumination 0.002 Lux @F1.0
  • Lens 2.8 mm
  • Super WDR up to 120dB
  • H.265 /H.264 High-Efficiency Video Coding
  • Built-in ICR filter for Day/Night switching
  • Supports local storage Micro SD/SDHC/SDXC
  • Built-in efficient IR LEDs, IR range up to 30m
  • Waterproof casing IP67
  • Built-in PoE compatible with 802.3af
  • ...
See full description See full description

  • Login

    IP

    Digital cameras that connect to the wired or wireless network.

  • Video Resolution

    5MP

    Even higher clarity compared to 4MP cameras, with the ability to clearly capture faces or license plates. Useful for professional and large spaces where detail is important.

  • Infrared

    1

    They feature infrared LED, allowing them to capture black and white images in low light conditions or in the dark.

  • Certification

    IP67

    Complete protection against dust or even immersion in water up to 1 meter for 30 minutes. Suitable for installation in areas with severe weather conditions, frequent rainfall, or coastal locations.

  • Motion Detection

    1

    With the ability to record or send notifications when the camera detects movement in the area.

  • Number of Lenses

    The number of lenses that a camera may have in the same body for better visual coverage of the area.
  • See all
Review the product
Product report

Description

Description

Features:

  • 1/3” Progressive Scan CMOS Image Sensor
  • Min. illumination 0.002 Lux @F1.0
  • Lens 2.8 mm
  • Super WDR up to 120dB
  • H.265 /H.264 High-Efficiency Video Coding
  • Built-in ICR filter for Day/Night switching
  • Supports local storage Micro SD/SDHC/SDXC
  • Built-in efficient IR LEDs, IR range up to 30m
  • Waterproof casing IP67
  • Built-in PoE compatible with 802.3af
  • Supports ONVIF Profile S
  • Includes junction box

Technical Specifications:

  • Camera Name: 5MP AI Color+ Vandal-proof Mini Bullet Network Camera
  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Min. Illumination: Color: [email protected]
  • WDR: 120dB Super WDR
  • Lens: 2.8mm/[email protected]
  • Field of View: H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm)
  • Shutter Speed: 1/100000s~1s
  • Illumination Distance: Up to 30m
  • S/N: >55dB
  • Maximum Image Resolution: 2592x1944
  • Frame Rate: 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
  • Secondary Stream: 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
  • Tertiary Stream: 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
  • Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
  • Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
  • Privacy Masking: Up to 4 areas
  • ROI: Up to 8 areas
  • Image Settings: Saturation/Brightness/Contrast/Sharpness
  • Interface: Ethernet, 1*RJ45 10M/100M Ethernet Port
  • Network: Supports NAS storage (Support NFS, SMB/CIFS), ANR
  • Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
  • Smart Analytics: Video Analysis, Region Entrance, Region Exit, Motion Detection, Tamper Detection, Line Crossing, Parking, Left Object, Removed Object
  • Storage System: Supports microSD/SDHC/SDXC up to 256G
  • Advanced Functions: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Impact, Global Mode, Anti-noise
  • SIP/VoIP Support: Yes
  • Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification
  • System Compatibility: ONVIF Profile G & Q & S & T
  • General: Operating Temperature: -40°C~60°C
  • Operating Humidity: 0~90% (Non-condensing)
  • Power Supply: PoE (802.3af)
  • Power Consumption: 3W MAX, 5W MAX (With LED Light on)
  • Durable Design: Up to IP67 for weather resistance
  • Casing: Durable IK10
  • Weight: 610g (Junction box version) / 450g (Cable version)
  • Dimensions: 97mmX74mmX180mm (Junction box version) / 64mmX64mmX160mm (Cable version)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Use
IP

Use

IP

Digital cameras that connect to the wired or wireless network.
Type
Bullet

Type

Bullet
Clear cameras with a wide range of capture, suitable for large indoor and outdoor spaces.
Placement
Outdoor

Placement

Outdoor

They have waterproof protection, which makes them capable of operating in an outdoor environment without being affected by weather conditions.
Video Resolution
5MP

Video Resolution

5MP

Even higher clarity compared to 4MP cameras, with the ability to clearly capture faces or license plates. Useful for professional and large spaces where detail is important.
Protection Certification
IP67

Protection Certification

IP67

Complete protection against dust or even immersion in water up to 1 meter for 30 minutes. Suitable for installation in areas with severe weather conditions, frequent rainfall, or coastal locations.
Vandal Resistance Rating
IK10

Vandal Resistance Rating

The IK protection rating indicates the protection classification of an enclosure from external impacts, in short, the resistance of a device to a strong impact. It consists of the code letters IK and a two-digit number that ranges from 00 to 10. Each two-digit number represents an energy value of the impact in Joules.

IK10
Resistance to impact from a 5 kg object dropped from a height of 40 cm
Power Source
PoE

Power Source

PoE

Ability to power and transfer data through an Ethernet cable.
Lens Size
2.8 mm
Colour
White

Night Vision

Infrared
Yes

Infrared


They feature infrared LED, allowing them to capture black and white images in low light conditions or in the dark.
Color Capture
No

Operations

PTZ
No

PTZ

The PTZ (pan-tilt-zoom) function allows you to zoom in and even rotate the camera vertically or horizontally remotely through the application.
Microphone
No

Microphone

The camera has a built-in microphone for recording sound.
Speaker
No
Mobile App
No

Mobile App

The camera can be connected to a mobile smartphone through an application. The application allows the user to manage the camera wherever they are.
Wide Angled Lens
No

Wide Angled Lens

The wide-angled lens has a larger horizontal viewing angle (110 degrees and above) and can therefore capture a wider range of the image.
Wide Dynamic Range
Yes

Wide Dynamic Range


WDR (Wide Dynamic Range) is a technology used in surveillance cameras to balance the contrast between bright and dark areas of the image, so that details are clearly rendered at both extremes.
Thermal
No

Thermal

Thermal technology allows the camera to create images based on the temperature differences between objects and their surroundings. While a regular camera is "blinded" by complete darkness, fog, or heavy rain, a thermal camera detects the infrared energy emitted by a person, an animal, or a vehicle.
Motion Detection
Yes

Motion Detection


With the ability to record or send notifications when the camera detects movement in the area.
Rotating
No

Rotating

With remote rotation capability that allows monitoring of more areas within the installation space.
Siren
No

Additional Features

Number of Cameras
1

Number of Cameras

The number of lenses that a camera may have in the same body for better visual coverage of the area.
Memory Card Slot
Yes

Memory Card Slot

The camera provides the ability to insert a memory card for immediate image capture.
Maximum Card Capacity
1TB
Solar Panel
No

Solar Panel

It features a panel that allows for the charging of its battery through solar energy.

Zoom Function

Digital Zoom
No
Optical Zoom
No

Smart Attributes

Wi-Fi
No

Wi-Fi

The camera connects via wi-fi network and data transmission and reception is wireless without the need for cables, except for power supply.
4G
No

4G

The camera connects via a 4G mobile network, and data transmission and reception are done wirelessly without the need for cables, except for the power supply cable.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
