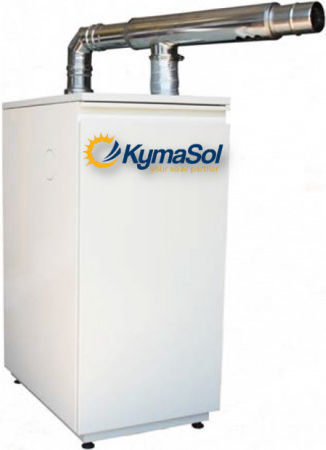

Individual Oil Unit for Preheating Combustion Air with Kymasol GTX 50 Burner

The GT-X individual oil unit is a complete boiler room in a compact package with reduced dimensions to fit easily in any space.

The unit's body is made of steel, with four flue gas diaphragms for higher efficiency and fuel savings. It is the ideal solution for small residences. An economical solution for individual heating with an excellent quality-to-price ratio.

The operating principle is based on the backpressure created by the returning flame inside the combustion chamber and the heat transfer by radiation. The flue gases reverse their course at the bottom of the combustion chamber and surround the flame along its entire length. This way, the flame does not come into contact with the boiler walls.

The Warranty covers: 3 years for the Boiler and 1 year for the Electronic Systems

Technical Characteristics GT-X:

• Bentone oil burner for preheating combustion air
• Pre-installed electrical connections, connection to power with Schuko plug
• Soundproofing levels inside the boiler for quieter operation
• Four flue gas diaphragms
• Design with an internal electrical panel for protection against water, moisture
• Thermal insulation

Technology:

• Covers painted with electrostatic anti-corrosion paint
• High-efficiency burner
• Pre-adjusted leveling bases
• Holes at the base of the unit for draining liquids from possible leaks
• Control panel with user-friendly menu

The GT-X individual unit is delivered with:

• Bentone oil burner for preheating combustion air
• Metal base with leveling bases
• Metal covers and insulation
• Circulator
• Expansion vessel
• 3 bar safety valve
• Automatic air vent
• Control panel
