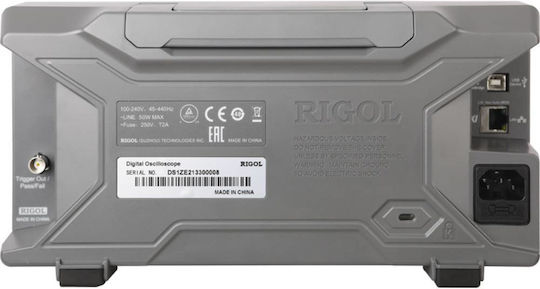

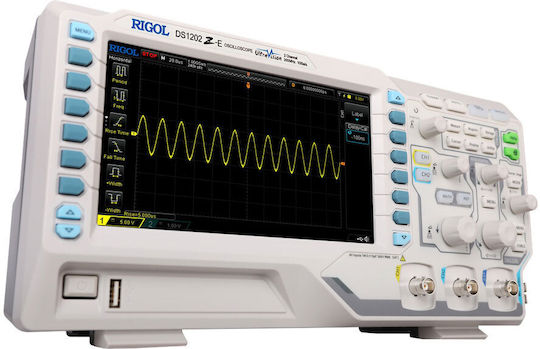

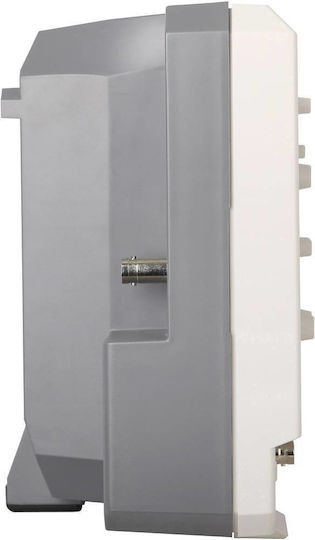

Rigol DS1202Z-E Heat Rate Monitor Counter 200MHz with 2 Channels and 7" Screen
Oscilloscopes & Frequency Generators

Rigol DS1202Z-E Heat Rate Monitor Counter 200MHz with 2 Channels and 7" Screen

The DS1000Z-E series offers affordable and high-performance digital oscilloscopes, designed for the most common design, debugging, and educational requirements typically found in the market.

The DS1000Z-E series offers affordable and high-performance digital oscilloscopes, designed for the most common design, debugging, and educational requirements typically found in the market.

See full description See full description
322 40 €
Delivery Mon, 10 Aug - Wed, 12 Aug
17,00 €   shipping cost
Sent from Greece
From NsMarket
Greece
See Multimeters on the page of NsMarket
Review the product
Product report

Description

Description

The DS1000Z-E series offers affordable and high-performance digital oscilloscopes, designed for the most common design, debugging, and educational requirements typically found in the market.

Key Features

  • Analog channel bandwidth: 200 MHz
  • 2 analog channels
  • Real-time sampling rate up to 1 GSa/s
  • Memory up to 24 Mpts
  • Waveform refresh rate up to 30,000 wfms/s
  • Up to 60,000 frames in real-time waveform recording on hardware, as well as playback function
  • Innovative "UltraVision" technology
  • Trigger and bus decoding functions
  • Low noise level, vertical scale range: 1 mV/div to 10 V/div
  • Interfaces: USB Host & Device, LAN (LXI), AUX
  • Compact size, lightweight, user-friendly
  • 7-inch WVGA (800x480) TFT LCD color display, with gradual brightness scale

Included in the package

  • Power cable compliant with the destination country's standards
  • USB cable
  • 2 x passive probes (350MHz)
  • Quick guide (printed)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Counter
Monitor Size
7 "
Bandwidth
200 MHz
Channels
2
Weight
3.5 kg
Height
16 cm
Length
31.3 cm
Width
12.2 cm

Signal Modulation

AM
No

AM

Information is transmitted by varying the amplitude (intensity) of the carrier signal while the frequency remains constant. It is used in RF applications and communications testing.
FM
No

FM

The information is transmitted through changes in the frequency of the carrier signal. It offers greater noise resistance compared to AM.
PM
No

PM

The information is transmitted through changes in the phase of the carrier signal. It is used in telecommunications and digital transmission systems.
PWM
No

PWM

Information is encoded by changing the duration (duty cycle) of the pulses while the amplitude remains constant. Common in power electronics and motor control.
FSK
No

FSK

Digital modulation where different frequencies correspond to different digital values (e.g., 0 and 1). It is used in modems and wireless communications.
ASK
No

ASK

Digital modulation where the information is represented by changes in the signal amplitude. It is used in simple data transmission systems.
PSK
No

Waveform Types

Sin
No

Sin

(Sinusoidal) Produces a smooth periodic waveform with continuous amplitude variation. Used in tests of electronic circuits, audio, and telecommunications.
Square
No

Square

Generates a signal that alternates between two voltage levels with abrupt transitions. Suitable for digital circuits and timing tests.
Ramp
No

Ramp

Produces a signal with a linear increase or decrease in voltage over time before the cycle repeats. Used in scanning, timing, and control systems.
Pulse
No

Pulse

Generates short pulses with adjustable amplitude and duration. Useful for testing digital circuits and analyzing system response.
Arbitrary
No

Arbitrary

Allows the creation or loading of custom waveforms beyond the predefined signal shapes. Suitable for specialized measurements and simulations.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
