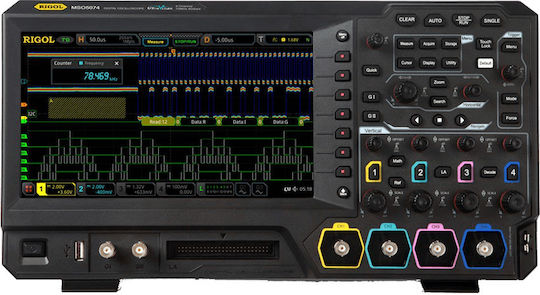

The MSO5000 Series oscilloscopes combine the best sampling rate and memory depth with a modern and flexible user interface enabled by the new UltraVision II architecture and the innovative Phoenix Chipset. With models ranging from 70 to 350 MHz with 2 or 4 analog channels, the MSO5000 series offers flexibility and capability on the engineer's bench. Analyze your signals with zone triggering, enhanced FFT resolution, color grading, and histograms supported by the high sampling rate and large memory.

Key Features:

• Analog bandwidth: 70 MHz. Bandwidth upgrade option up to 350 MHz supported
• 4 analog channels, 16 digital channels (requires LA probe)
• Up to 8 GSa/s real-time sampling rate
• Memory depth option up to 200 Mpts
• High waveform refresh rate (over 500,000 wfm/s)
• Automatic measurement of 41 waveform parameters
• Support for various triggering methods and serial protocol decoding
• Capability for Bode plot creation
• Integrates 7 independent instruments in 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer
• Available interfaces: USB HOST & DEVICE, LAN (LXI), HDMI, TRIG OUT, and USB-GPIB

Included in the package:

• Power cable
• USB cable
• 4 passive probes, 350 MHz (Rigol PVP2350)
• Quick start guide
