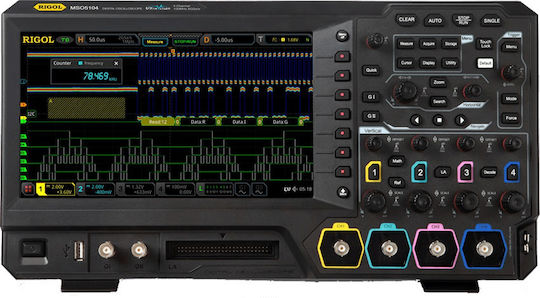

The MSO5000 Series oscilloscopes combine the best sampling rate and memory depth with a modern and flexible user interface enabled by the new UltraVision II architecture and the innovative Phoenix Chipset. With models ranging from 70 to 350 MHz with 2 or 4 analog channels, the MSO5000 series offers flexibility and capability on the engineer's bench. Analyze your signals with zone triggering, improved FFT resolution, color grading, and histograms supported by high sampling rate and large memory.

Main Features

• Analog bandwidth: 100 MHz. Bandwidth upgrade option up to 350 MHz
• 4 analog channels, 16 digital channels (Digital channel probe required)
• Up to 8 GSa/s real-time sampling rate
• Memory up to 200 Mpts (optional)
• High waveform capture rate (over 500,000 wfm/s)
• Automatic measurement of 41 waveform parameters. Full memory measurement mode
• Wide variety of triggering options and serial protocol decoding
• Up to 450,000 frames in real-time and infinite waveform recording and playback functions
• Independent search, navigation keys, and event table
• Built-in advanced power analysis software (optional)
• Integrates 7 independent instruments in 1, including a digital oscilloscope, logic analyzer, spectrum analyzer, waveform generator, digital voltmeter, frequency counter and totalizer, and protocol analyzer
• 9-inch touch screen display with 256 levels of color differentiation and persistence
• Multiple interfaces available: USB HOST & DEVICE, LAN (LXI), HDMI, TRIG OUT, and USB-GPIB

Included in the package:

• Power cable
• USB cable
• 4 passive probes, 350 MHz (Rigol PVP2350)
• Quick start guide
