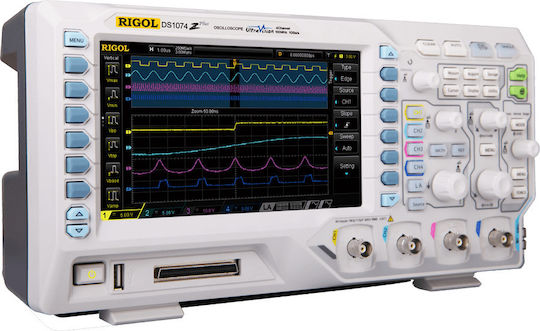

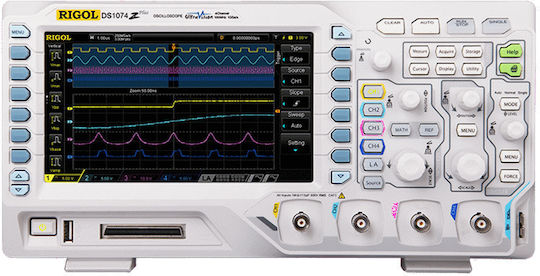

The Rigol DS1074Z-S Plus 70MHz digital oscilloscope with built-in waveform generator, 2-channel, is affordable and at the same time meets the customer's requirements with its innovative technology, top features, powerful analysis functions, and extensive analysis capabilities.

Main Features:

• Bandwidth: 70MHz, 4 analog channels
• Frequency generator: 25MHz, 2 channels
• Capability to upgrade digital logic analyzer inputs
• Real-time sampling rate: up to 1 GSa/s
• Memory: up to 12 Mpts and 24Mpts as an option
• Revolutionary "UltraVision" technology
• Waveform refresh rate: up to 30,000 wfms/s
• Real-time waveform recording, display, and analysis for up to 60,000 screen snapshots
• Low noise floor, dynamic range: 1mV/div to 10V/div
• Scalable and decode serial protocols (RS232, I2C, SPI) as an option
• 7-inch TFT WVGA (800x480) display with adjustable waveform display intensity in multiple levels
• Comprehensive connectivity options: LAN, USB Host & Device, AUX & USB-GPIB as an option
• Lightweight, compact, and user-friendly design

Main Accessories

• Probe×4 (1.5m), (1:1 or 10:1 adjustable) Passive Probes
• Power cord
• USB cable
• Quick Guide
