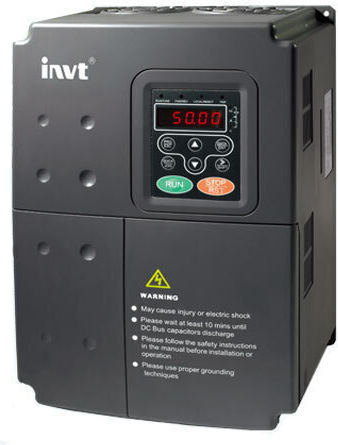

Elevator Drive CHV180 (Three-phase) for elevator applications.

• Designed specifically for elevator movement with a maximum speed of up to 4m/s.
• Built-in "PID" control.
• Automatic voltage correction (AVR protection).
• Over 30 fault protections (overvoltage, overload, undervoltage, phase loss, etc.).
• Connection to UPS for rescue operations.
• Input voltage: 400V (3Φ).
• Input frequency: 47 ~ 63Hz.
• Output frequency: 0 ~ 400Hz.
• Power: 5.5kW.
• Output current: 13A.
• Control type:
• Vector Control (VC).
• Sensorless Vector Control (SVC).
• Adjustable speed ratio: 1:1000 (VC) / 1:100 (SVC).
• Inputs:
• 2 analog 0-10V / 0-20mA.
• 6 digital (+4 with expansion card).
• Outputs:
• 2 analog 0-10V / 0-20mA.
• 2 programmable relay digital.
• Speed accuracy:
• ±0.5% of maximum (SVC).
• ±0.1% of maximum (VC).
• Serial communication RS-485 (optional).
• Dimensions (LxWxH): 160x180x250mm.
• Certifications: ISO 9001, ISO 14001, CE, EMC 1, CE 1.
