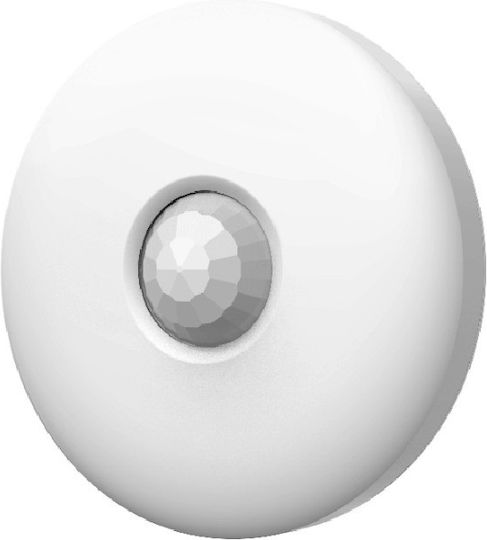

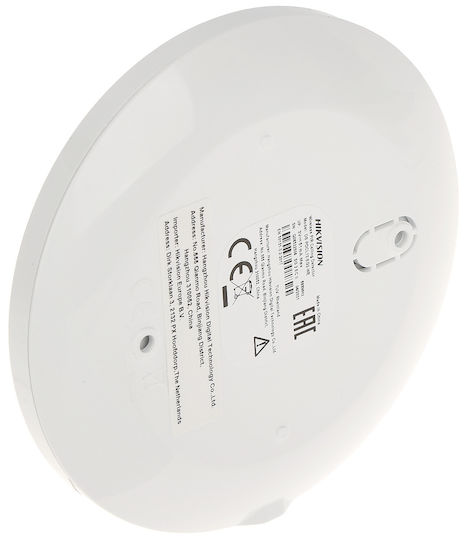

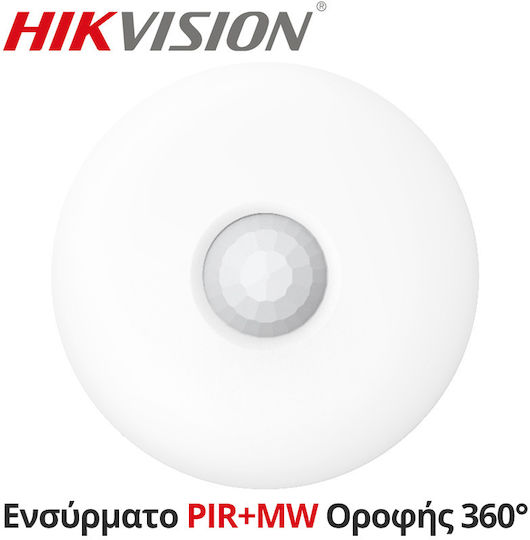

Hikvision Wired Motion Sensor Microwave & Infrared 360° Scope 12m
Motion Sensors

Hikvision Wired Motion Sensor Microwave & Infrared 360° Scope 12m

HIKVISION DS-PDCL12DT-EG2 - Wired ceiling motion detector, dual technology (PIR+MW), with quad pyro-electric sensor and 360° panoramic coverage.

  • Recommended installation height: 2.4 to 4m
  • Detection...

HIKVISION DS-PDCL12DT-EG2 - Wired ceiling motion detector, dual technology (PIR+MW), with quad pyro-electric sensor and 360° panoramic coverage.

  • Recommended installation height: 2.4 to 4m
  • Detection range: up to 12m
  • 3D lens with 172 zones in 3 levels
  • MW frequency: 24GHz
  • Digital signal processing
  • Features: tamper, sensitivity selection, use of end-of-line...
See full description See full description

  • Login

    Wired

    It connects to the installation system via cable.

  • Detection Type

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

    Microwave

    Detects motion by emitting microwaves and measuring changes in the reflected radiation.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
  • See all
Review the product
Product report

Description

Description

HIKVISION DS-PDCL12DT-EG2 - Wired ceiling motion detector, dual technology (PIR+MW), with quad pyro-electric sensor and 360° panoramic coverage.

  • Recommended installation height: 2.4 to 4m
  • Detection range: up to 12m
  • 3D lens with 172 zones in 3 levels
  • MW frequency: 24GHz
  • Digital signal processing
  • Features: tamper, sensitivity selection, use of end-of-line resistors, LED activation option
  • Power supply: 9~16 VDC
  • Dimensions: 120x33.2 mm (diameter x height)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Infrared, Microwave

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

Microwave

Detects motion by emitting microwaves and measuring changes in the reflected radiation.
Detection Angle
360 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Ceiling
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

HIKVISION DS-PDCL12DT-EG2 - Wired ceiling motion detector, dual technology (PIR+MW), with quad pyro-electric sensor and 360° panoramic coverage.

  • Recommended installation height: 2.4 to 4m
  • Detection range: up to 12m
  • 3D lens with 172 zones in 3 levels
  • MW frequency: 24GHz
  • Digital signal processing
  • Features: tamper, sensitivity selection, use of end-of-line resistors, LED activation option
  • Power supply: 9~16 VDC
  • Dimensions: 120x33.2 mm (diameter x height)

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Infrared, Microwave

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

Microwave

Detects motion by emitting microwaves and measuring changes in the reflected radiation.
Detection Angle
360 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Ceiling
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
