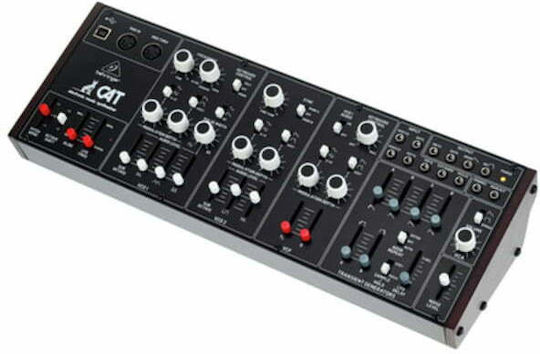

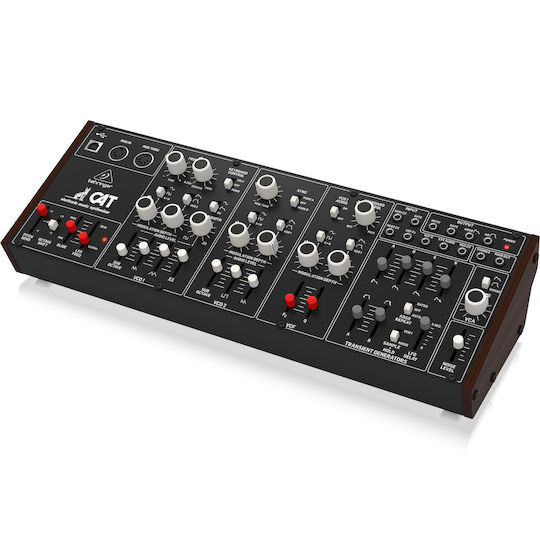

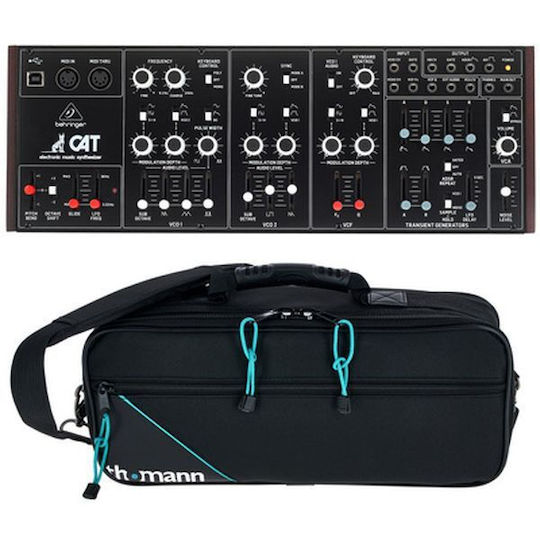

Analog Synthesizer

• VCO 1 with 4 mixable waveforms (sawtooth, triangle, pulse, and sub-octave)
• Pulse width modulator and two adjustable modulation sources
• VCO 2 with 3 mixable waveforms (sawtooth, triangle, and sub-octave) and two adjustable modulation sources
• Low-pass filter with resonance, two adjustable modulation sources, and adjustable key follow
• Two analog envelopes (ADSR and AR)
• Analog LFO
• Noise generator and sample & hold unit
• Visual duophone
• 3.5 mm audio input for processing sound from external sources
• Can be used as a complete Eurorack voice synthesizer (width: 70 HP)
• Multidimensional chain mode for connecting up to 16 devices
• Main output via 3.5 mm jack and 2x 6.3 mm (high and low level)
• Headphone output: 3.5 mm jack
• MIDI In / Thru and USB-MIDI
• Dimensions: 87 x 374 x 136 mm
• Includes power supply (12 VDC, 1000 mA)
