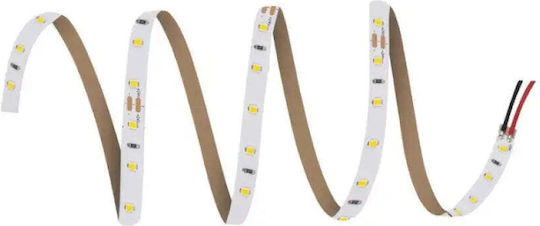

Ledvance LED Strip 24V Cold White Light 5m Type SMD2835
LED Strips

Ledvance LED Strip 24V Cold White Light 5m Type SMD2835 Code: 4058075707931

TECHNICAL DATA

  • Nominal consumption: 40.00 W
  • Construction power: 40.00 W
  • Nominal power per meter: 9 W
  • Nominal voltage: 24 V
  • Current type: DC
  • Nominal current: 33500 mA

PHOTOMETRIC DATA

  • Luminous...

TECHNICAL DATA

  • Nominal consumption: 40.00 W
  • Construction power: 40.00 W
  • Nominal power per meter: 9 W
  • Nominal voltage: 24 V
  • Current type: DC
  • Nominal current: 33500 mA

PHOTOMETRIC DATA

  • Luminous efficacy: 116 lm/W
  • Luminous flux: 4240 lm
  • Luminous flux per meter: 1040 lm
  • Color temperature: 6500 K
  • Color rendering index: Ra80
  • LED light color: Cool white
  • Color...
See full description See full description

  • Power Supply

    The power supply concerns the voltage of the current that the LED strip must have.

    2. If the LED strip does not include a power supply, then the power supply must be purchased separately. We must ensure that the power supply has the corresponding voltage (volt) in order to connect it to the outlet.

    24V

    The LED film requires a 24-volt power supply to operate. If the power supply is not included in the package, you will need to purchase it separately.

  • Light Shade

    Cold White

    "Cool white is measured on the Kelvin scale with values ranging from 4200K to 6200K. The tones of cool white are whiter compared to natural light."
  • See all
Review the product
Product report

Description

Description

TECHNICAL DATA

  • Nominal consumption: 40.00 W
  • Construction power: 40.00 W
  • Nominal power per meter: 9 W
  • Nominal voltage: 24 V
  • Current type: DC
  • Nominal current: 33500 mA

PHOTOMETRIC DATA

  • Luminous efficacy: 116 lm/W
  • Luminous flux: 4240 lm
  • Luminous flux per meter: 1040 lm
  • Color temperature: 6500 K
  • Color rendering index: Ra80
  • LED light color: Cool white
  • Color rendering: Cool white
  • Typical color consistency deviation: ≤5 sdcm

LIGHTING TECHNICAL DATA

  • Beam angle: 120 °
  • Nominal beam angle (half-value): 120.00 °

LED MODULE INFORMATION

  • Number of LEDs per meter: 70
  • Number of LEDs per unit: 350

DIMENSIONS & WEIGHT

  • Length: 5000.00 mm
  • Length - smallest unit: 100 mm
  • Cable length: 500.000
  • Width: 8.00 mm
  • Height: 1.50 mm
  • Conductor cross-section: 0.5 mm²
  • LED pitch: 14.29 mm
  • Product weight: 78.00 g

TEMPERATURE & OPERATING CONDITIONS

  • Ambient temperature range: -20…+55 °C
  • Max. temperature at test point: 75 °C

LIFETIME

  • Nominal lamp life duration: 30000 h

FEATURES

  • Dimmable: Yes
  • Lowest bending radius: 30.0 mm
  • Self-adhesive: Yes

CERTIFICATES & STANDARDS

  • Approval mark - approval: CE, TUV
  • Insulation class: III
  • Degree of protection IP: IP00
  • Salt mist resistance: No
  • UV resistance: No

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
4058075707931

Dimensions

Length
5 m
Power Source
24V

Power Source

The power supply concerns the voltage of the current that the LED strip must have.

2. If the LED strip does not include a power supply, then the power supply must be purchased separately. We must ensure that the power supply has the corresponding voltage (volt) in order to connect it to the outlet.

24V
The LED film requires a 24-volt power supply to operate. If the power supply is not included in the package, you will need to purchase it separately.
Light Colour
Cold White

Light Colour

Cold White

"Cool white is measured on the Kelvin scale with values ranging from 4200K to 6200K. The tones of cool white are whiter compared to natural light."
White Temperature
6500 K
USB
No

Additional Features

LED type
SMD2835

LED type

This concerns the dimensions of the LEDs on the strip. For example, an SMD 3528 strip has LEDs with a width of 3.5mm and a length of 2.8mm.

SMD2835
It is a 2.8mm wide and 3.5mm long led type. They are suitable for indoor lighting. The 2835s are brighter than the 3528s and can provide much more light.
Power
9 W/m

Power

Power is measured in watts per meter and indicates the amount of electrical energy consumed for each meter of the LED strip.
2. The power values are usually quite small and therefore the cost of electricity consumption is considered negligible.
TV
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

TECHNICAL DATA

  • Nominal consumption: 40.00 W
  • Construction power: 40.00 W
  • Nominal power per meter: 9 W
  • Nominal voltage: 24 V
  • Current type: DC
  • Nominal current: 33500 mA

PHOTOMETRIC DATA

  • Luminous efficacy: 116 lm/W
  • Luminous flux: 4240 lm
  • Luminous flux per meter: 1040 lm
  • Color temperature: 6500 K
  • Color rendering index: Ra80
  • LED light color: Cool white
  • Color rendering: Cool white
  • Typical color consistency deviation: ≤5 sdcm

LIGHTING TECHNICAL DATA

  • Beam angle: 120 °
  • Nominal beam angle (half-value): 120.00 °

LED MODULE INFORMATION

  • Number of LEDs per meter: 70
  • Number of LEDs per unit: 350

DIMENSIONS & WEIGHT

  • Length: 5000.00 mm
  • Length - smallest unit: 100 mm
  • Cable length: 500.000
  • Width: 8.00 mm
  • Height: 1.50 mm
  • Conductor cross-section: 0.5 mm²
  • LED pitch: 14.29 mm
  • Product weight: 78.00 g

TEMPERATURE & OPERATING CONDITIONS

  • Ambient temperature range: -20…+55 °C
  • Max. temperature at test point: 75 °C

LIFETIME

  • Nominal lamp life duration: 30000 h

FEATURES

  • Dimmable: Yes
  • Lowest bending radius: 30.0 mm
  • Self-adhesive: Yes

CERTIFICATES & STANDARDS

  • Approval mark - approval: CE, TUV
  • Insulation class: III
  • Degree of protection IP: IP00
  • Salt mist resistance: No
  • UV resistance: No

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
4058075707931

Dimensions

Length
5 m
Power Source
24V

Power Source

The power supply concerns the voltage of the current that the LED strip must have.

2. If the LED strip does not include a power supply, then the power supply must be purchased separately. We must ensure that the power supply has the corresponding voltage (volt) in order to connect it to the outlet.

24V
The LED film requires a 24-volt power supply to operate. If the power supply is not included in the package, you will need to purchase it separately.
Light Colour
Cold White

Light Colour

Cold White

"Cool white is measured on the Kelvin scale with values ranging from 4200K to 6200K. The tones of cool white are whiter compared to natural light."
White Temperature
6500 K
USB
No

Additional Features

LED type
SMD2835

LED type

This concerns the dimensions of the LEDs on the strip. For example, an SMD 3528 strip has LEDs with a width of 3.5mm and a length of 2.8mm.

SMD2835
It is a 2.8mm wide and 3.5mm long led type. They are suitable for indoor lighting. The 2835s are brighter than the 3528s and can provide much more light.
Power
9 W/m

Power

Power is measured in watts per meter and indicates the amount of electrical energy consumed for each meter of the LED strip.
2. The power values are usually quite small and therefore the cost of electricity consumption is considered negligible.
TV
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
