Uniview DVR NVR XVR301-04G
Surveillance Video Recorders

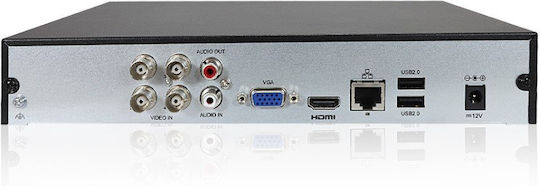

Uniview DVR NVR XVR301-04G

Recorder 4 channels 4MP H.264/265, 5in1 XVR301-04G UNV

  • Video/audio input: Analog video input 4-ch, BNC 8-ch, BNC
  • IP video input 2 channels, each channel up to 4 MP
  • Supported analog camera types for...

Recorder 4 channels 4MP H.264/265, 5in1 XVR301-04G UNV

  • Video/audio input: Analog video input 4-ch, BNC 8-ch, BNC
  • IP video input 2 channels, each channel up to 4 MP
  • Supported analog camera types for AHD, TVI, CVI, CVBS
  • Video/audio output: VGA and HDMI with multiple resolutions
  • Two-way audio 1-ch, RCA
  • Network: Support for multiple protocols (TCP/IP, P2P etc.)...
See full description See full description

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    Full HD+

    A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    24

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265

    Advanced codec with approximately 50% better compression than H.264 for the same quality. Ideal for 4K and 8K content, supports HDR and UHD, significantly reducing the required bandwidth.

    • The standard supports approximately 30–35 days of continuous recording on a 2TB hard drive

    (The values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene motion, and hardware.)
  • See all
Review the product
Product report

Description

Description

Recorder 4 channels 4MP H.264/265, 5in1 XVR301-04G UNV

  • Video/audio input: Analog video input 4-ch, BNC 8-ch, BNC
  • IP video input 2 channels, each channel up to 4 MP
  • Supported analog camera types for AHD, TVI, CVI, CVBS
  • Video/audio output: VGA and HDMI with multiple resolutions
  • Two-way audio 1-ch, RCA
  • Network: Support for multiple protocols (TCP/IP, P2P etc.)
  • Recording resolution: 5MP Lite/4MP Lite/1080P/720P
  • Frame rate with main and secondary recording stream
  • Hard disk: Up to 6 TB for each hard disk with SATA interface
  • General: Power supply 12V DC, consumption ≤ 8 W (without hard disk)
  • Operating environment: -10°C to +55°C, Humidity ≤ 90% RH
  • Dimensions: 260mm × 240mm × 46mm
  • Weight (without hard disk): ≤ 1.1 Kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD+

Resolution

Full HD+

A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
24 Mbps

Incoming Bandwidth: 24

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
VGA, HDMI, USB

Ports

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265

Video Compression

H.265

Advanced codec with approximately 50% better compression than H.264 for the same quality. Ideal for 4K and 8K content, supports HDR and UHD, significantly reducing the required bandwidth.

  • The standard supports approximately 30–35 days of continuous recording on a 2TB hard drive

(The values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene motion, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
6 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Recorder 4 channels 4MP H.264/265, 5in1 XVR301-04G UNV

  • Video/audio input: Analog video input 4-ch, BNC 8-ch, BNC
  • IP video input 2 channels, each channel up to 4 MP
  • Supported analog camera types for AHD, TVI, CVI, CVBS
  • Video/audio output: VGA and HDMI with multiple resolutions
  • Two-way audio 1-ch, RCA
  • Network: Support for multiple protocols (TCP/IP, P2P etc.)
  • Recording resolution: 5MP Lite/4MP Lite/1080P/720P
  • Frame rate with main and secondary recording stream
  • Hard disk: Up to 6 TB for each hard disk with SATA interface
  • General: Power supply 12V DC, consumption ≤ 8 W (without hard disk)
  • Operating environment: -10°C to +55°C, Humidity ≤ 90% RH
  • Dimensions: 260mm × 240mm × 46mm
  • Weight (without hard disk): ≤ 1.1 Kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD+

Resolution

Full HD+

A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
24 Mbps

Incoming Bandwidth: 24

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
VGA, HDMI, USB

Ports

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265

Video Compression

H.265

Advanced codec with approximately 50% better compression than H.264 for the same quality. Ideal for 4K and 8K content, supports HDR and UHD, significantly reducing the required bandwidth.

  • The standard supports approximately 30–35 days of continuous recording on a 2TB hard drive

(The values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene motion, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
6 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
