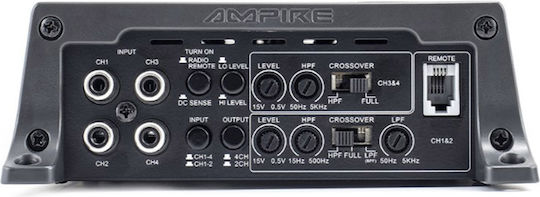

The Ampire MBM4.24V-4G is a 4-channel digital car amplifier, designed for 24V electrical systems. The balanced speaker input allows its use with high-quality sound systems. It features bandpass and optional connection for bass control on channels 1 and 2, making it versatile in use.

• Class D 4-channel for 24-volt vehicle electrical system
• Input for bass level remote control for 2 or 4 channels
• Extremely compact design
• 4x RCA or 4x balanced speaker inputs via adapter
• 440 Watt RMS / 880 Watt max.
• Stable 2 Ω or 4 Ω (bridged)
• Illuminated AMPIRE logo
• Operating voltage: 20-32 volt DC
• Idle current: 0.52A
• Input sensitivity: 500mV - 15.0V
• Channels 1 & 2 with High-pass filter/slope: 15Hz - 500Hz / 12dB
• Channels 3 & 4 with High-pass filter/slope: 50Hz - 5000Hz / 12dB
• Wire cross-section of terminal connections: Power up to 20mm², Speakers up to 4mm²
• Fuse: 15A x 2 (internal)
• Maximum dimensions: 251 x 141 x 50mm
• Weight: 1.85 kg
• Inputs: RCA x4 for high and low level

To ensure the safe operation of this amplifier, speakers must be connected to all speaker outputs.
