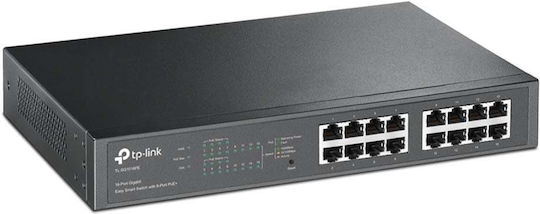

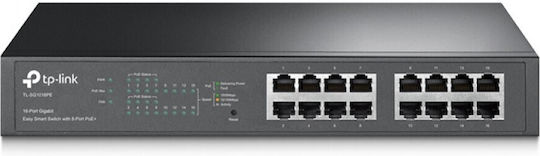

TP-LINK TL-SG1016PE Unmanaged L2 PoE+ Switch with 16 Gigabit (1Gbps) Ethernet Ports

Key features:

  • Layer: L2
  • Type: Unmanaged
See full description

Description

Description

What does this product do?

The TL-SG1016PE is a 16-port Gigabit Desktop/Rack switch with 8 ports supporting the PoE+ standard. It provides an easy way to expand a wired network by transmitting power and data over a single Ethernet cable. With a total power budget of 150 W*, up to 30 W per port, the TL-SG1016PE powers more high-power devices such as wireless access points (APs), IP cameras, or IP phones. Additionally, with innovative energy-efficient technology, the TL-SG1016PE saves on power consumption, making it an environmentally friendly solution for your business network.

How this product works

8 ports TL-SG1016PE support the Power over Ethernet Plus (PoE+) standard, which can automatically detect and supply power to any IEEE 802.3af/at compliant devices. In this case, electrical power is transmitted along with data over a single cable, allowing you to extend your network where there are electrical cables or outlets, where you want to fix devices such as AP, IP Cameras, or IP Phones.

Overload Arrangement

The TL-SG1016PE has a priority function that helps protect the system when its power is overloaded. If the power consumption of all PoE+ devices is greater than or equal to 150 W, a priority will be assigned among the 8 PoE+ ports, and the system will cut off the power supply to the port with the lowest priority.

Port priority function

Priority (Port 1 > Port 2 > Port 3 > Port 4 > Port 5 > Port 6 > Port 7 > Port 8): This feature will help protect the system if the system's power is overloaded. For example, Ports 1, 2, 3, 4, and 6 use 30 W (the maximum power per port is 30 W), the system's power is a total of 150 W (the max PoE LED light will be green if the power consumption of all PoE PDs is >= 150 W). If an additional PD is inserted into Port 5 with 20 W, then the system will cut off Port 6 to protect the system, meaning Ports 1, 2, 3, and 4 will use 120 W and Port 5 will use 20 W, and no power will be supplied to Port 6.

User-friendly

The TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its desktop/rack mount adaptable design, excellent performance, and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack Mount Switch with 8-Port PoE+ is an excellent choice for expanding your network.

Manufacturer

See full description

Specifications

Specifications

Network Specifications

Type
Unmanaged
Layer
L2
PoE
Yes

Technical Specifications

Ethernet connections
16 Port
Ethernet Speed
1000 Mbps
Switching Speed
32 Gbps
MAC Address Table
8000 entries
Rack mounting
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
