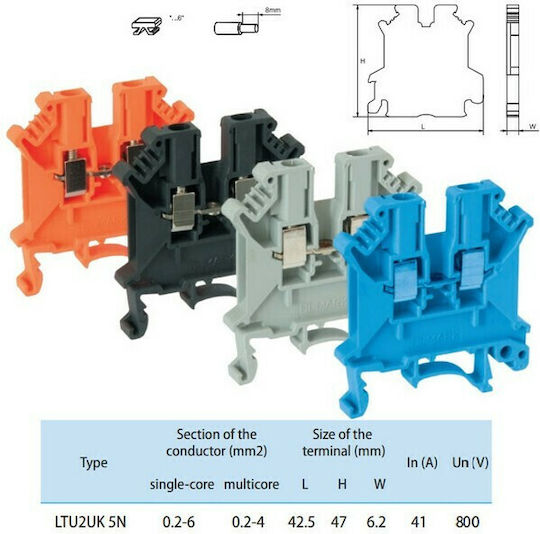

LTU2UK 5N BLACK RAIL TERMINAL

Rail terminals with universal application in electrical panels. For mounting on DIN rails. Different sizes for optimal use of available space, selecting suitable terminals for the corresponding conductors. Manufactured from non-flammable insulating polymer material.

Technical specifications:

• Nominal voltage: up to 800V
• Nominal current: up to 125A
• Conductor section: 0.2mm²÷35.00mm²
• Material: non-flammable polymer
• Color: gray, red, black, blue
• Insulation: one-sided
• Mounting: on DIN rail

Advantages:

• Compact size making them preferable for wiring in tight spaces
• Safe, quick, and easy to use
• Ability for multiple disconnections in small areas
• Easy to install and dismantle

Applications:

• Public buildings
• Industry
