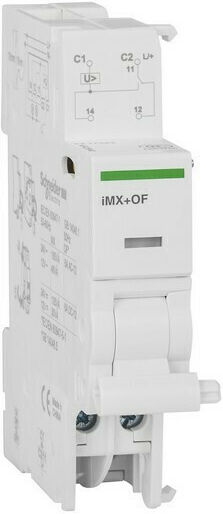

iMX+OF release shunt 12-24VAC (A9A26948)

• Key parameters of the Acti 9 product range
• Product or component type: Trip release with OZ contact
• Short name of the device: IMX+OF
• Signal contact set: 1 Z/O
• Nominal switching current:
• AC-12: 6 A at 12 V alternating current (AC) - 50 Hz
• AC-12: 6 A at 24 V alternating current (AC) - 50 Hz
• DC-12: 6 A at 12 V direct current (DC)
• DC-12: 6 A at 24 V direct current (DC)
• Control voltage [Uc]: 12 V AC 50/60 Hz, 12 V DC, 24 V AC 50/60 Hz, 24 V DC
• Width in units: 9 mm
• Additional parameters:
• Acti 9 range compatibility: Acti 9 iDPN (China version), Acti 9 iDPN9, Vigiic 9 iC65, Acti 9 ARA, Acti 9 iID, Acti 9 iSW-NA, Acti 9 RCA, Acti 9 iC60 (double terminal miniature circuit breaker)
• Local marking: Activity indicator base light
• Mounting method: 18 mm
• Color: White
• Connections - terminals:
• Terminal clamp 1 wire(s) 6 mm² rigid
• terminal clamp 2 wires 2.5 mm² rigid
• terminal clamp 1 wire(s) 4 mm² flexible
• terminal clamp 2 wire(s) 2.5 mm² flexible with wire sleeve
• Tightening torque: 1 N.m
• Operating environment:
• Standards: EN/IEC 60947-5-1
• Tropicalization: 2 according to EN/IEC 60947-5-1
• Relative humidity: 95% at 55 °C
• Ambient temperature for device operation: -25...50 °C
• Ambient temperature for storage: -40...85°C
