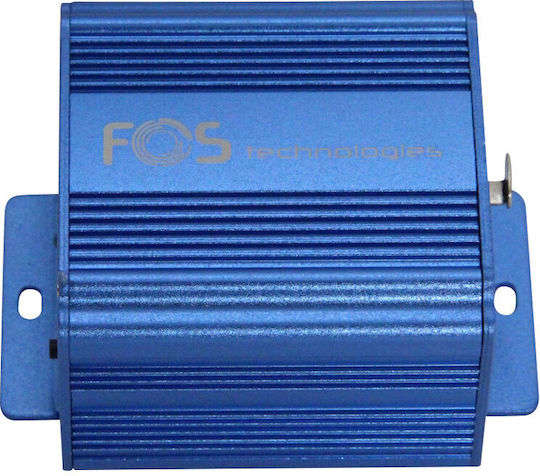

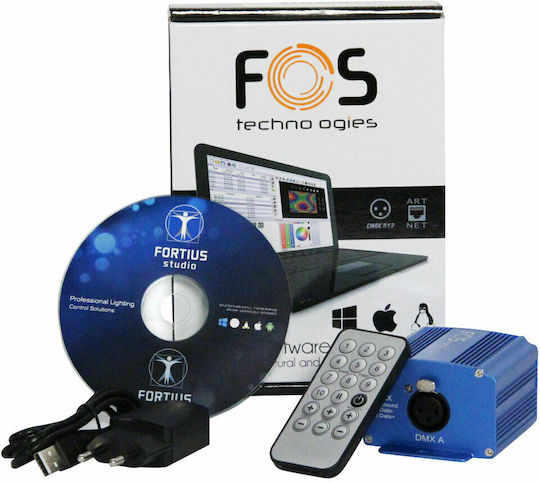

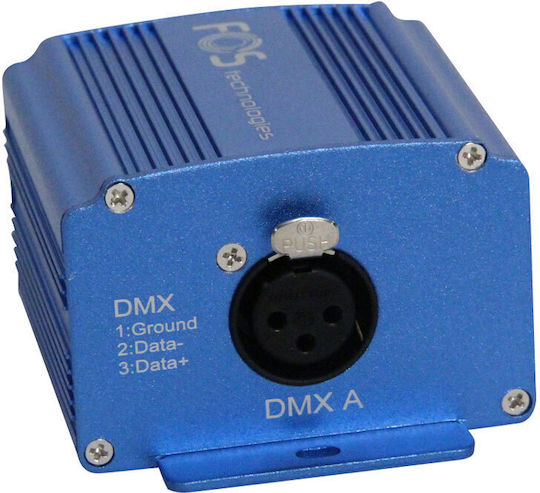

The lighting console features 512 DMX channels and is equipped with an LED Player interface. It uses Mini USB 2.0 and is powered via 5 V DC USB. It also includes an infrared remote control and supports scene activation on startup.

Product features:

• User-friendly processor for scene programming.
• Effect generator for colors (RGB) and Pan/Tilt movements (X/Y).
• DMX address mapping for 128 DMX Universes via Patch.
• Full profile processor with access to over 7,000 library documents.
• Advanced Matrix processor for all LED pixel settings.
• Device memory for storing scenes and autonomous sequence activation.
• Live Board mode for easy playback and scene activation.
• Compatibility with 32/64 bit systems (Windows, Mac OS X, Linux).
• Free available updates.
• Ability to modify DMX signal speed and DMX universe distribution.
• Smartphone communication for controlling the Live Board.
• Scene organization and scheduling based on time and date.
• Graphical timeline for an overview of all active Time Triggers without a computer.
• Adjustment of output channels and universe count.
• Scene activation via infrared controls and external I/O contacts.
• Master/Slave mode for synchronizing up to 64 interfaces.
• Input options from Mouse, Keyboard, MIDI, and DMX IN on the Live Board.
• Multiple activation programming with the last priority manager.
• Scenes can play audio files (MP3, Wave).
• Ability to manually or keyboard-manage color, dimmer, speed, blackout, and pause.
