Speaker Accessories

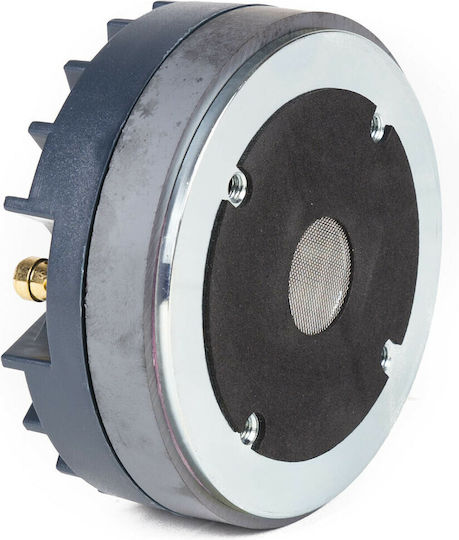

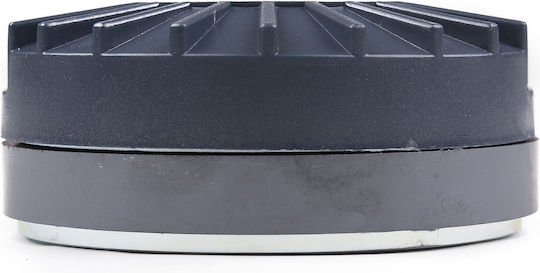

Master Audio Compression Driver Speaker DR7P 1" Impedance 8Ω

Professional horn with titanium diaphragm for P.A. speakers and speaker horns that accept flanged Driver.

Its nominal power is 100Watt Rms while the Maximum is 200Watt Max / 110dB. The frequency range...

Professional horn with titanium diaphragm for P.A. speakers and speaker horns that accept flanged Driver.

Its nominal power is 100Watt Rms while the Maximum is 200Watt Max / 110dB. The frequency range it can reproduce is from 1000 to 20000 Hz. An ideal choice for professional speakers.

The DR-7P is one of the most classic and timeless choices for replacing...

See full description See full description

Description

Description

Professional horn with titanium diaphragm for P.A. speakers and speaker horns that accept flanged Driver.

Its nominal power is 100Watt Rms while the Maximum is 200Watt Max / 110dB. The frequency range it can reproduce is from 1000 to 20000 Hz. An ideal choice for professional speakers.

The DR-7P is one of the most classic and timeless choices for replacing your old head.

Specifications

  • Maximum Power: 200W
  • Frequency: 1000 - 20000 Hz
  • SPL(1W/m): 110dB
  • Coil Diameter: 1.75" (44mm)
  • Impedance: 8Ω
  • Output Diameter: 25 mm (1"-3/4)
  • External Head Diameter: 115mm
  • Total Head Depth: 48mm
  • Head Weight: 1.3kg

Manufacturer

See full description

Specifications

Specifications

Type
Compression Driver
Impendance
8 ohm
Power
200 W
Diameter
1 "

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Tasοs Sennis
    5
    1 out of 1 members found this review helpful

    For 20-40 euros, this driver is the right choice. It has very good and powerful sound and produces frequencies that a decent driver at twice the price would never produce! I doubt the 100RMS given by the manufacturer because with a decent capacitor or a decent crossover it can easily play at 500w. On the downside, this particular driver and generally this series from the company has a slightly 'muddy' sound, and I noticed this at low volumes where this usually happens and I perceived it as a 'bad' midrange. I believe this is due to the magnet's poles, which are of average quality. On the other hand, at high volumes, it literally breaks eardrums and, due to the high power, plays more clearly. In general, as a replacement, it is very ok (in terms of sound and performance) but certainly, even for a professional, it can be a temporary solution. Now, for home or amateur use, I recommend it with my eyes closed because it will make you proud, just always with a crossover or capacitor.

    Translated from Greek ·
    • Construction quality
    • Value for money
    Did you find this review helpful?
  • farsarisg

    Verified purchase

    Satisfactory driver for replacing a speaker that no longer has spare parts available. I haven't tested it yet to see its performance, although I doubt the manufacturer's claim of 100w RMS power.

    Translated from Greek ·
    Did you find this review helpful?
  • For 20-40 euros, this driver is the right choice. It has very good and powerful sound and produces frequencies that a decent driver at twice the price would never produce! I doubt the 100RMS given by the manufacturer because with a decent capacitor or a decent crossover it can easily play at 500w. On the downside, this particular driver and generally this series from the company has a slightly 'muddy' sound, and I noticed this at low volumes where this usually happens and I perceived it as a 'bad' midrange. I believe this is due to the magnet's poles, which are of average quality. On the other hand, at high volumes, it literally breaks eardrums and, due to the high power, plays more clearly. In general, as a replacement, it is very ok (in terms of sound and performance) but certainly, even for a professional, it can be a temporary solution. Now, for home or amateur use, I recommend it with my eyes closed because it will make you proud, just always with a crossover or capacitor.

    Translated from Greek ·
    1
  • Satisfactory driver for replacing a speaker that no longer has spare parts available. I haven't tested it yet to see its performance, although I doubt the manufacturer's claim of 100w RMS power.

    Translated from Greek ·
    0
  • See all

Description & Specifications

Professional horn with titanium diaphragm for P.A. speakers and speaker horns that accept flanged Driver.

Its nominal power is 100Watt Rms while the Maximum is 200Watt Max / 110dB. The frequency range it can reproduce is from 1000 to 20000 Hz. An ideal choice for professional speakers.

The DR-7P is one of the most classic and timeless choices for replacing your old head.

Specifications

  • Maximum Power: 200W
  • Frequency: 1000 - 20000 Hz
  • SPL(1W/m): 110dB
  • Coil Diameter: 1.75" (44mm)
  • Impedance: 8Ω
  • Output Diameter: 25 mm (1"-3/4)
  • External Head Diameter: 115mm
  • Total Head Depth: 48mm
  • Head Weight: 1.3kg

Manufacturer

Type
Compression Driver
Impendance
8 ohm
Power
200 W
Diameter
1 "

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Reviews (2)

  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Tasοs Sennis
    5
    1 out of 1 members found this review helpful

    For 20-40 euros, this driver is the right choice. It has very good and powerful sound and produces frequencies that a decent driver at twice the price would never produce! I doubt the 100RMS given by the manufacturer because with a decent capacitor or a decent crossover it can easily play at 500w. On the downside, this particular driver and generally this series from the company has a slightly 'muddy' sound, and I noticed this at low volumes where this usually happens and I perceived it as a 'bad' midrange. I believe this is due to the magnet's poles, which are of average quality. On the other hand, at high volumes, it literally breaks eardrums and, due to the high power, plays more clearly. In general, as a replacement, it is very ok (in terms of sound and performance) but certainly, even for a professional, it can be a temporary solution. Now, for home or amateur use, I recommend it with my eyes closed because it will make you proud, just always with a crossover or capacitor.

    Translated from Greek ·
    • Construction quality
    • Value for money
    Did you find this review helpful?
  • farsarisg

    Verified purchase

    Satisfactory driver for replacing a speaker that no longer has spare parts available. I haven't tested it yet to see its performance, although I doubt the manufacturer's claim of 100w RMS power.

    Translated from Greek ·
    Did you find this review helpful?
  • For 20-40 euros, this driver is the right choice. It has very good and powerful sound and produces frequencies that a decent driver at twice the price would never produce! I doubt the 100RMS given by the manufacturer because with a decent capacitor or a decent crossover it can easily play at 500w. On the downside, this particular driver and generally this series from the company has a slightly 'muddy' sound, and I noticed this at low volumes where this usually happens and I perceived it as a 'bad' midrange. I believe this is due to the magnet's poles, which are of average quality. On the other hand, at high volumes, it literally breaks eardrums and, due to the high power, plays more clearly. In general, as a replacement, it is very ok (in terms of sound and performance) but certainly, even for a professional, it can be a temporary solution. Now, for home or amateur use, I recommend it with my eyes closed because it will make you proud, just always with a crossover or capacitor.

    Translated from Greek ·
    1
  • Satisfactory driver for replacing a speaker that no longer has spare parts available. I haven't tested it yet to see its performance, although I doubt the manufacturer's claim of 100w RMS power.

    Translated from Greek ·
    0
  • See all
26,80 €
