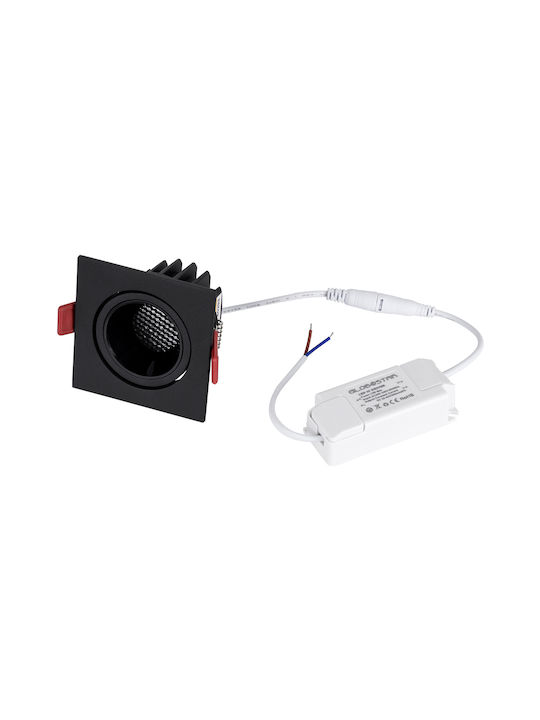

Technical Data

• Brand: GLOBOSTAR LED LIGHTING AND ACCESSORIES GROUP
• Series: ARCHITECTURAL LED SPOT DOWNLIGHTS
• Series Name: LEO-SQ
• Product Identification Code: 60293
• Category/Product Type: Indoor LED Spot
• Installation Method: Recessed
• Shape: Square

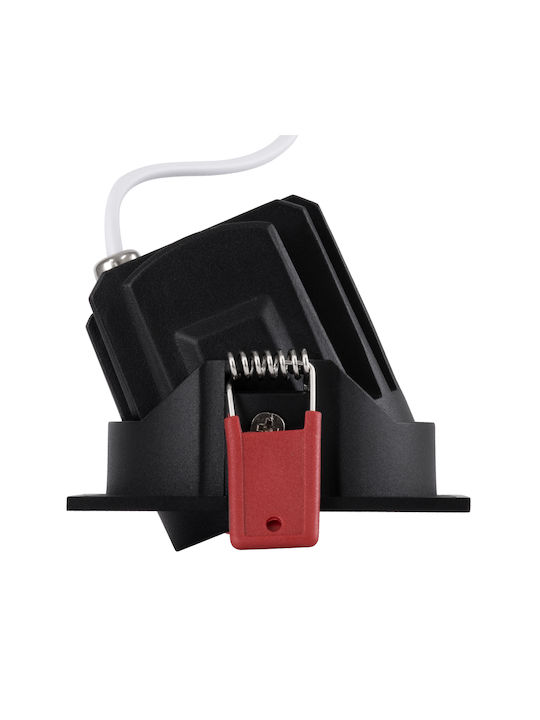

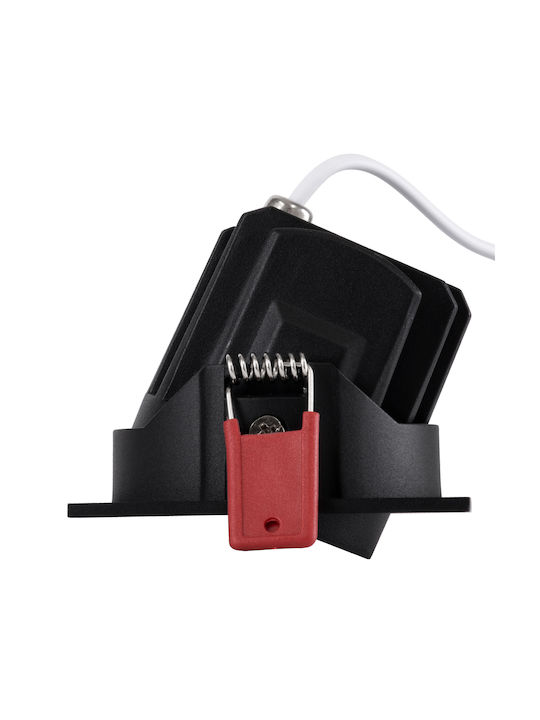

• Rotatable: Yes
• Anti-glare Reflector: 2 Reflectors: Milky or Honeycomb Effect (Included in the Package)
• Material: Aluminum
• Body Color: Black
• Power Consumption: 10 W
• Equivalent: 85 W
• Energy Saving: >80%
• Nominal Voltage: AC 85..265 V
• Network Frequency: 50..60 Hz
• Surge Protection Device (SPD): Yes 1000V SPD
• Power Factor λ: > 0.95
• LED Type: BRIDGELUX COB
• Useful Luminous Flux: 1250 lm
• Luminous Flux Performance: 125 lm/W
• Energy Efficiency Class: D
• Color Temperature: 2700 K
• Light Color: Warm White
• Color Rendering Index Ra: > 85
• Color Uniformity in McAdam Ellipse Steps: ≤ 6 SDCM
• Luminous Flux Maintenance Factor: 0.94
• Displacement Factor (cos φ1): 0.92
• Flicker Measurement: 0.02 Pst LM Flicker Free
• Beam Angle: 38° Narrow Cone
• Operating Temperature Range: -10…+40 °C
• Protection Rating: IP20
• Dimmable: No
• Nominal Lifespan: 30000 Hours
• Number of Switching Cycles: 50000 On / Off Cycles
• Certificates & Standards: CE EMC Directive 2014/30/EU - CE LVD Directive 2014/35/EU - RoHS 2 Directive 2011/65/EU
• Mercury Content: 0.0 mg
• UV / IR: 0.0 mg
• Startup Time: 100%

Dimensions & Weight

• Product Dimensions: L8.5 x W8.5 x H6.6cm
• Compatible Cut Hole: Q7.5cm
• Product Weight: 285g
• Packaging Type: GloboStar® Label
• Quantity per Package: 1 Pc.
• Quantity per Main Package (Box): 50 Pcs.
• Packaging Dimensions: L10 x W10 x H9cm
• Product Weight with Packaging: 320g
• Main Package Dimensions (Box): L53 x W22 x H47cm
• Net Weight of Main Package (Box): 14500g
• Volumetric Weight of Main Package (Box): 10960g
• Shipping Method: Any Method (Courier or Transport)
