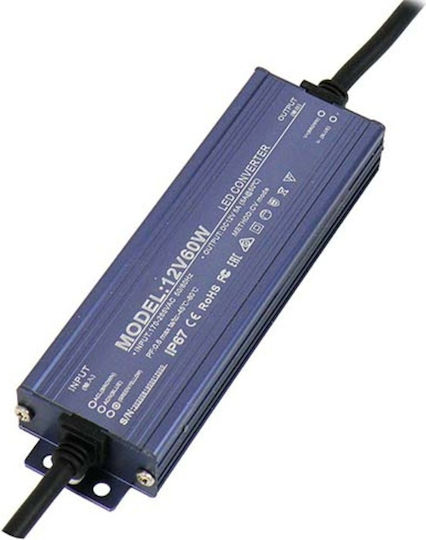

YSD DC power supply 60WHA-12, 12VDC, 60W, 5A, IP67

The YSD power supplies are known for their high efficiency, which is accompanied by a variety of protection systems, providing reliable and trouble-free operation. They are made from quality materials, using modern methods and strict quality control criteria.

• Short-circuit, overload, over-voltage & over-temperature protection
• Waterproof IP67, ideal for indoor and outdoor installation
• High-quality metal construction
• Reliable and trouble-free operation

Technical specifications:

• Output voltage: 12VDC
• Output voltage range: 12VDC±0.5VDC
• Output current: Max 5A
• Output power: Max 60W
• Output power range: 0~60W
• Ripple & Noise: 120mV
• Linear Regulation: ±1%
• Load Regulation: ±1%
• Start-up Time (Typ): 600ms/230VAC 800ms/115VAC
• Hold Up Time (Typ): 100ms/230VAC 100ms/115VAC
• Input voltage: 100-264Vac
• Frequency: 50/60Hz
• Input current: 0.52A/230Vac or 0.92A/115Vac
• Power factor: PF>0.6
• No-load power consumption: Efficiency (typ.): 84%
• Inrush current (typ.): Cold start 50A at 230Vac
• Control surge capability: L,N:2KV L,N-PE:4KV
• Leakage current: Max. 0.5mA
• Size: 202 x 35 x 24mm
• Weight: 260g

Kilograms: 0.270

Dimensions: 24.0 x 4.0 x 4.0
