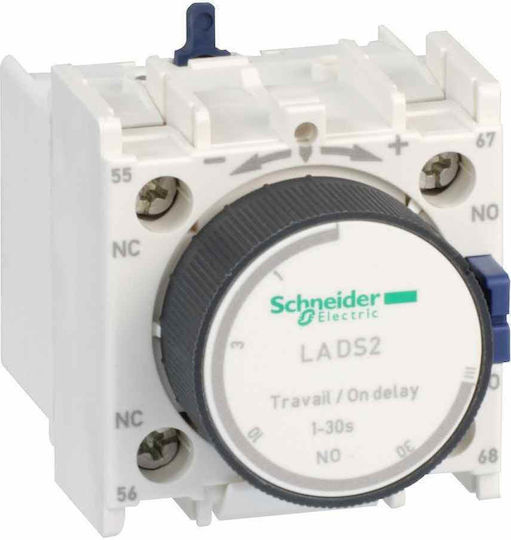

ON-delay LADS2 time delay contact block from Schneider Electric. Auxiliary contact block for TeSys D switches with contacts LC1D, LC1F, and CAD control relays.

• Contacts: 1 NO + 1 NC
• Rated voltage up to 690V AC
• Time delay range: 1-30 seconds
• Delay of 40ms between the opening of the NC contact and the closing of the NO contact
• High reliability and durability with front mounting
• Mechanical lifespan: 5 Mcycles
• Operating temperature: -40…70 °C
• Protection degree: IP20
• Dimensions: Height 48mm, Width 44mm, Depth 61mm
