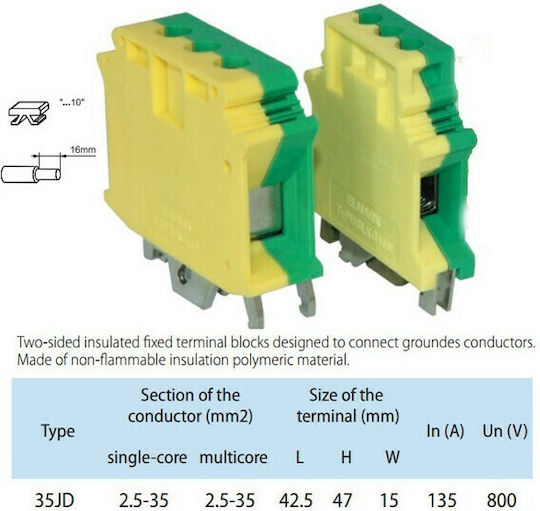

35JD DIN RAIL TERMINAL YELLOW/GREEN

Fixed terminal blocks with universal application in distribution electrical panels. Designed for mounting on DIN rails. Available in a variety of sizes for optimal use of available space by choosing the appropriate terminals for the corresponding conductors. Double-insulated fixed terminals designed for connecting grounded conductors. Made from non-flammable polymer material.

• Technical specifications:
• Nominal voltage: up to 800V
• Nominal current: up to 135A
• Conductor cross-section: 0.2mm² - 35.00mm²
• Material: non-flammable polymer
• Color: yellow-green
• Insulation: double
• Installation: on DIN rail

• Advantages:
• Their small size makes them preferable in confined spaces.
• Safe, fast, and easy to use.
• Facilitate the creation of multiple connections in small surfaces.
• Easy to install and disassemble.

• Applications:
• Public buildings
• Industry
