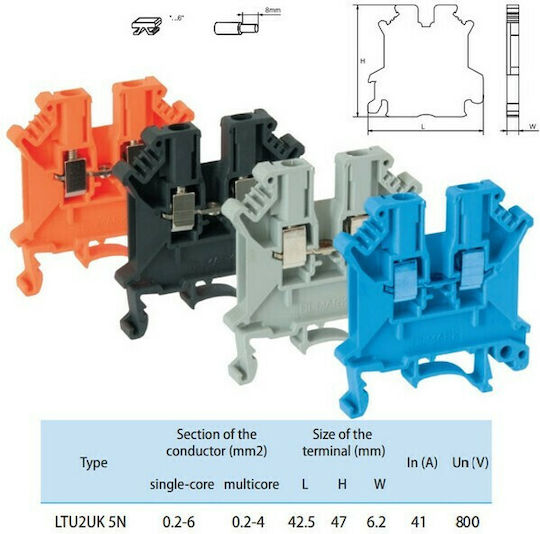

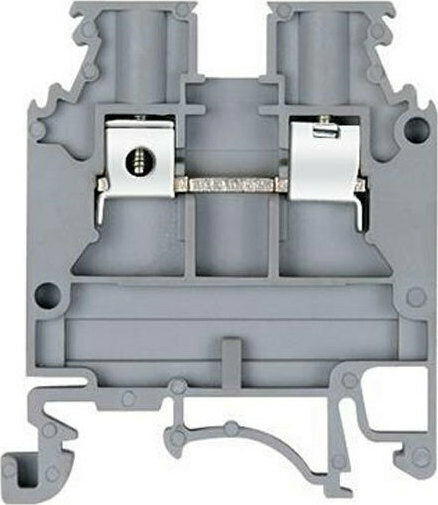

RAIL TERMINAL LTU2UK 5N GREY. Fixed terminal blocks with universal application in electrical panels. For mounting on a DIN rail. Available in a variety of sizes for optimal use of available space by selecting suitable terminals for the corresponding conductors. Made from non-flammable polymer insulation materials.

Technical specifications:

• Nominal voltage: up to 800V
• Nominal current: up to 125A
• Conductor cross-section: 0.2mm²÷35.00mm²
• Material: non-flammable polymer
• Color: grey, red, black, blue
• Insulation: single-sided
• Installation: on DIN rail

Advantages:

• Their small size makes them preferable for wiring in limited spaces
• Safe, quick, and easy to use
• Allow multiple connections in small areas
• Easy to install and disassemble

Applications:

• Public buildings
• Industry
