Hikvision Wired Motion Sensor Microwave & Infrared 85° Detection Angle 12m Scope
Motion Sensors

Hikvision Wired Motion Sensor Microwave & Infrared 85° Detection Angle 12m Scope

HIKVISION DS-PDD12-EG2 Wired Indoor Motion Detector Dual Technology PIR+MW.

  • 3D lens with 52 zones at 4 levels with no dead detection angles.
  • PIR (Passive Infrared) motion detector and MW (Microwave)...

HIKVISION DS-PDD12-EG2 Wired Indoor Motion Detector Dual Technology PIR+MW.

  • 3D lens with 52 zones at 4 levels with no dead detection angles.
  • PIR (Passive Infrared) motion detector and MW (Microwave) detector operating at a frequency of 24GHz K-Band.

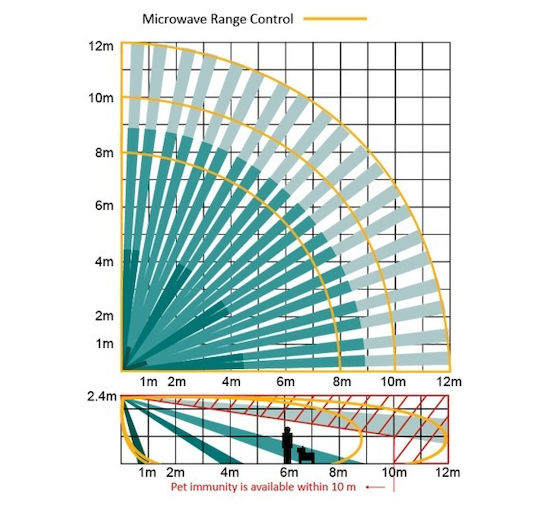

  • Detection range of up to 12m with a detection angle of 85°.
  • Recommended installation height of 1.8 to 2.4m.
  • ...
See full description See full description

  • Login

    Wired

    It connects to the installation system via cable.

  • Detection Type

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

    Microwave

    Detects motion by emitting microwaves and measuring changes in the reflected radiation.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
  • See all
Review the product
Product report

Description

Description

HIKVISION DS-PDD12-EG2 Wired Indoor Motion Detector Dual Technology PIR+MW.

  • 3D lens with 52 zones at 4 levels with no dead detection angles.
  • PIR (Passive Infrared) motion detector and MW (Microwave) detector operating at a frequency of 24GHz K-Band.
  • Detection range of up to 12m with a detection angle of 85°.
  • Recommended installation height of 1.8 to 2.4m.
  • Pet-ignoring feature for pets up to 10 kg within a range of 10m using a pet mask.
  • Digital temperature compensation to minimize false alarms.
  • Sealed optical elements to prevent insect entry.
  • Tamper protection and integrated single/double EOL resistors.
  • Adjustable sensitivity of the PIR sensor in 3 levels (High / Auto / Low).
  • Adjustable range for the MW detector.
  • Ability to select AND/OR between PIR & MW for alarm triggering.
  • Independent LED indicators (PIR - MW - Alarm) that can be turned off.
  • EN50131 Security Grade 2 certification.
  • Power supply: 9~16 VDC, Consumption: 17 mA (max).
  • Dimensions (WxHxD): 65.7x45.5x103.8 mm.
  • Compatible with mounts: DS-PDB-IN-WAL, DS-PDB-IN-UNIVERSAL (not included).

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Infrared, Microwave

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

Microwave

Detects motion by emitting microwaves and measuring changes in the reflected radiation.
Detection Angle
85 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

HIKVISION DS-PDD12-EG2 Wired Indoor Motion Detector Dual Technology PIR+MW.

  • 3D lens with 52 zones at 4 levels with no dead detection angles.
  • PIR (Passive Infrared) motion detector and MW (Microwave) detector operating at a frequency of 24GHz K-Band.
  • Detection range of up to 12m with a detection angle of 85°.
  • Recommended installation height of 1.8 to 2.4m.
  • Pet-ignoring feature for pets up to 10 kg within a range of 10m using a pet mask.
  • Digital temperature compensation to minimize false alarms.
  • Sealed optical elements to prevent insect entry.
  • Tamper protection and integrated single/double EOL resistors.
  • Adjustable sensitivity of the PIR sensor in 3 levels (High / Auto / Low).
  • Adjustable range for the MW detector.
  • Ability to select AND/OR between PIR & MW for alarm triggering.
  • Independent LED indicators (PIR - MW - Alarm) that can be turned off.
  • EN50131 Security Grade 2 certification.
  • Power supply: 9~16 VDC, Consumption: 17 mA (max).
  • Dimensions (WxHxD): 65.7x45.5x103.8 mm.
  • Compatible with mounts: DS-PDB-IN-WAL, DS-PDB-IN-UNIVERSAL (not included).

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Infrared, Microwave

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

Microwave

Detects motion by emitting microwaves and measuring changes in the reflected radiation.
Detection Angle
85 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
